C3001-08YYSB00R HSM IDC connector

Symbol Micros: Z MT08

21059

Z MT08

Contractor Symbol:

Case : Rys.MT08

Datasheet

Technical drawing Add to favourites

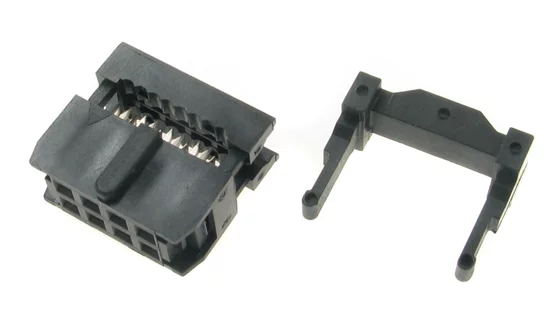

Female 10pin IDC, pitch 2.54mm for ribbon cable 1.27mm, black color, with fastener, gold flash contacts eqiv. IDC08-LF,

Parameters

Number of pins:	8
Mounting:	Tape mounting (1,27mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Female

All parameters

Manufacturer:: HSM Manufacturer part number: C3001-08YYSB00R RoHS Case style: Rys.MT08

In stock:

1270 pcs.

Quantity of pcs.	2+	10+	50+	220+	1100+
Net price (EUR)	0,5424	0,3283	0,2522	0,2270	0,2165

Add to comparison tool Add inquiry (RFQ)

Packaging:
220/2160 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Mounting:	Tape mounting (1,27mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Female
