CH254-IDC-08-B-A CONNECTAR IDC connector

Symbol Micros: Z MT08-C

110691

Z MT08-C

Contractor Symbol:

Case : Rys.MT08-C

Datasheet

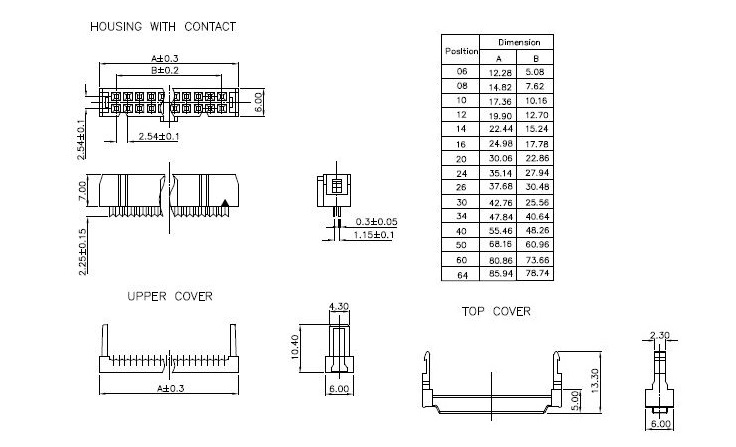

Technical drawing Add to favourites

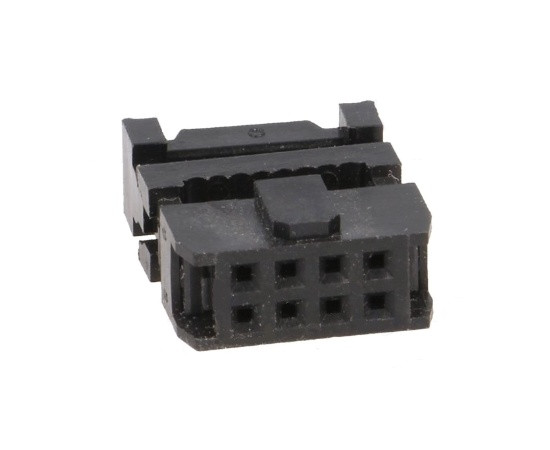

Female 08pin IDC, pitch 2.54mm for ribbon cable 1.27mm, black color, with fastener, gold flash contacts eqiv. IDC-08, IDC08, AWP-08, IDC08-LF

Parameters

Number of pins:	8
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1016-08MA2BB Case style: Rys.MT08-C

External warehouse:

5492 pcs.

Quantity of pcs.	228+ (Please wait for the order confirmation)
Net price (EUR)	0,0417

Add to comparison tool Add inquiry (RFQ)

Packaging:
228

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	8
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female
