DS1017-14MA2B CONNFLY IDC connector

Symbol Micros: Z MT14 2.0

87251

Z MT14 2.0

Contractor Symbol:

Case : Rys.MT14 2.0

Datasheet

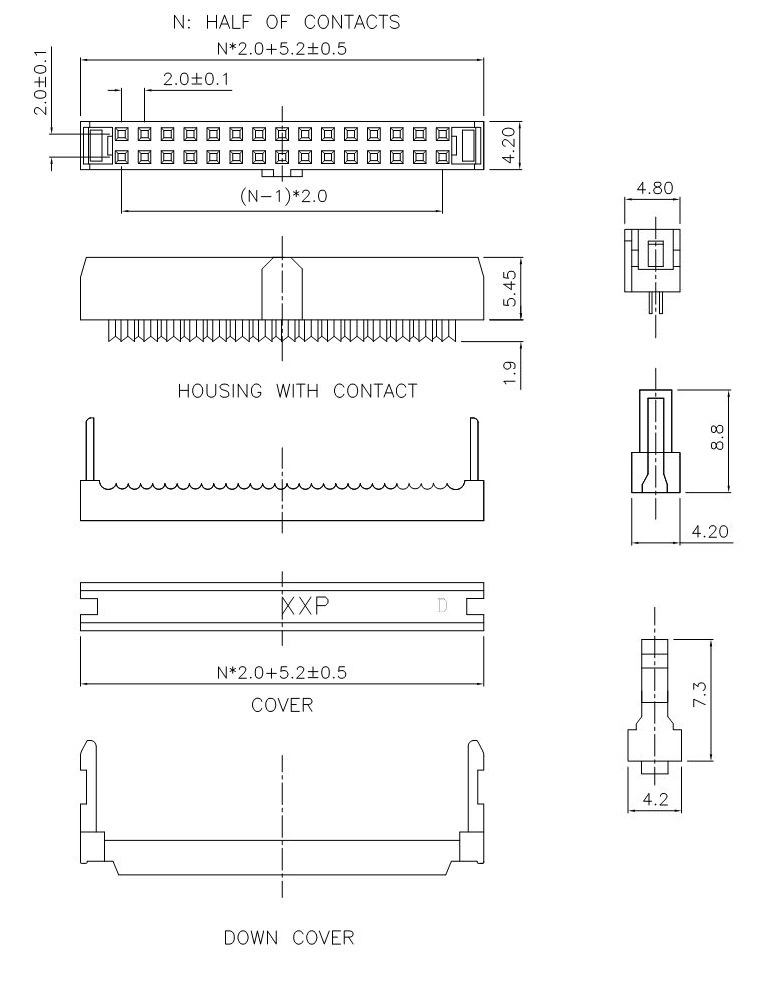

Technical drawing Add to favourites

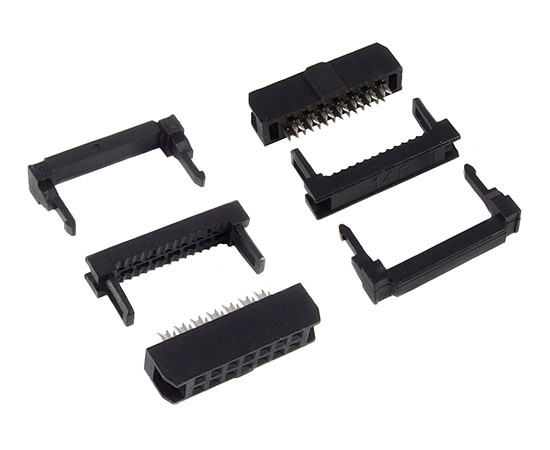

Female 14pin IDC, pitch 2.00mm for ribbon cable 1.00mm, black color, with fastener, gold flash contacts eqiv. DS1017-14MA2, IDCM10-LF

Parameters

Number of pins:	14
Mounting:	Tape mounting (1mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,0mm
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1017-14MA2B RoHS Case style: Rys.MT14 2.0

In stock:

962 pcs.

Quantity of pcs.	3+	10+	40+	168+	1000+
Net price (EUR)	0,2831	0,1803	0,1309	0,1111	0,1028

Add to comparison tool Add inquiry (RFQ)

Packaging:
168/1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1017-14MA2B Case style: Rys.MT14 2.0

External warehouse:

2832 pcs.

Quantity of pcs.	168+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1028

Add to comparison tool Add inquiry (RFQ)

Packaging:
168

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	14
Mounting:	Tape mounting (1mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,0mm
Type of connector:	Female
