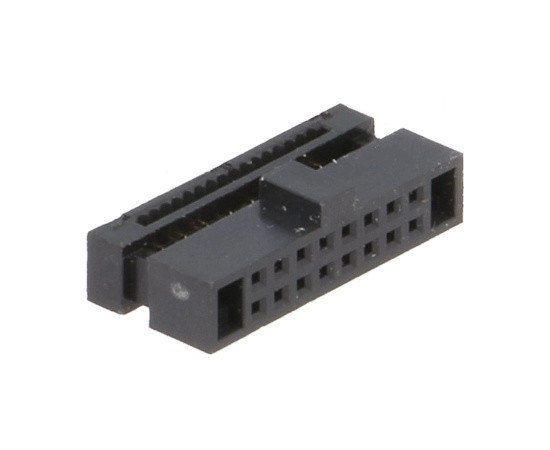

DS1017-01-16NA8 CONNFLY IDC connector

Symbol Micros: Z MT16 1.27

87288

Z MT16 1.27

Contractor Symbol:

Case : Rys.MT16 1.27

Datasheet

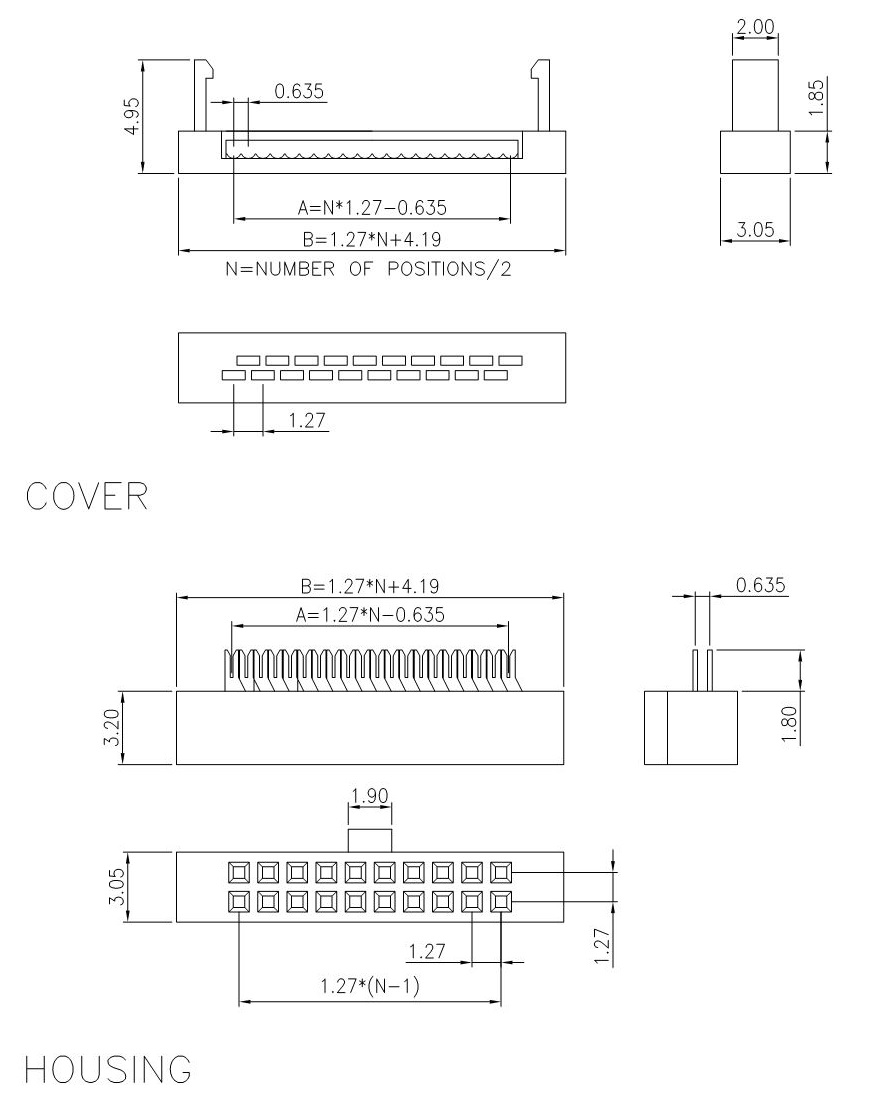

Technical drawing Add to favourites

Female 16pin IDC, pitch 1.27mm for ribbon cable 0.635mm, black color, with fastener, gold flash contacts eqiv. DS1017-01-16NA8

Parameters

Number of pins:	16
Mounting:	Tape mounting (0,635mm)
Gold plating:	Gilded contacts
Terminal pitch:	1,27mm
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1017-01-16NA8 Case style: Rys.MT16 1.27

External warehouse:

934 pcs.

Quantity of pcs.	33+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2537

Add to comparison tool Add inquiry (RFQ)

Packaging:
33

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	16
Mounting:	Tape mounting (0,635mm)
Gold plating:	Gilded contacts
Terminal pitch:	1,27mm
Type of connector:	Female
