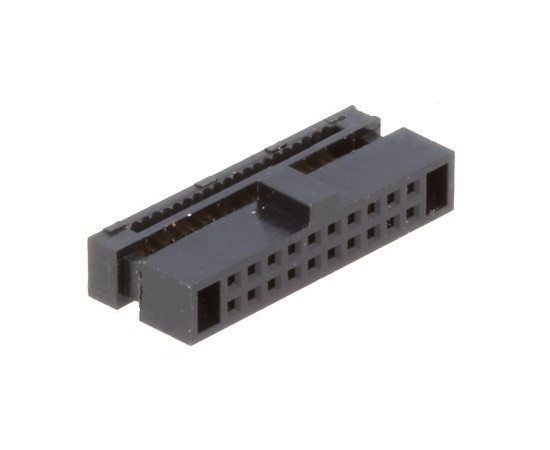

DS1017-01-20NA8 CONNFLY IDC connector

Symbol Micros: Z MT20 1.27

87290

Z MT20 1.27

Contractor Symbol:

Case : Rys.MT20 1.27

Datasheet

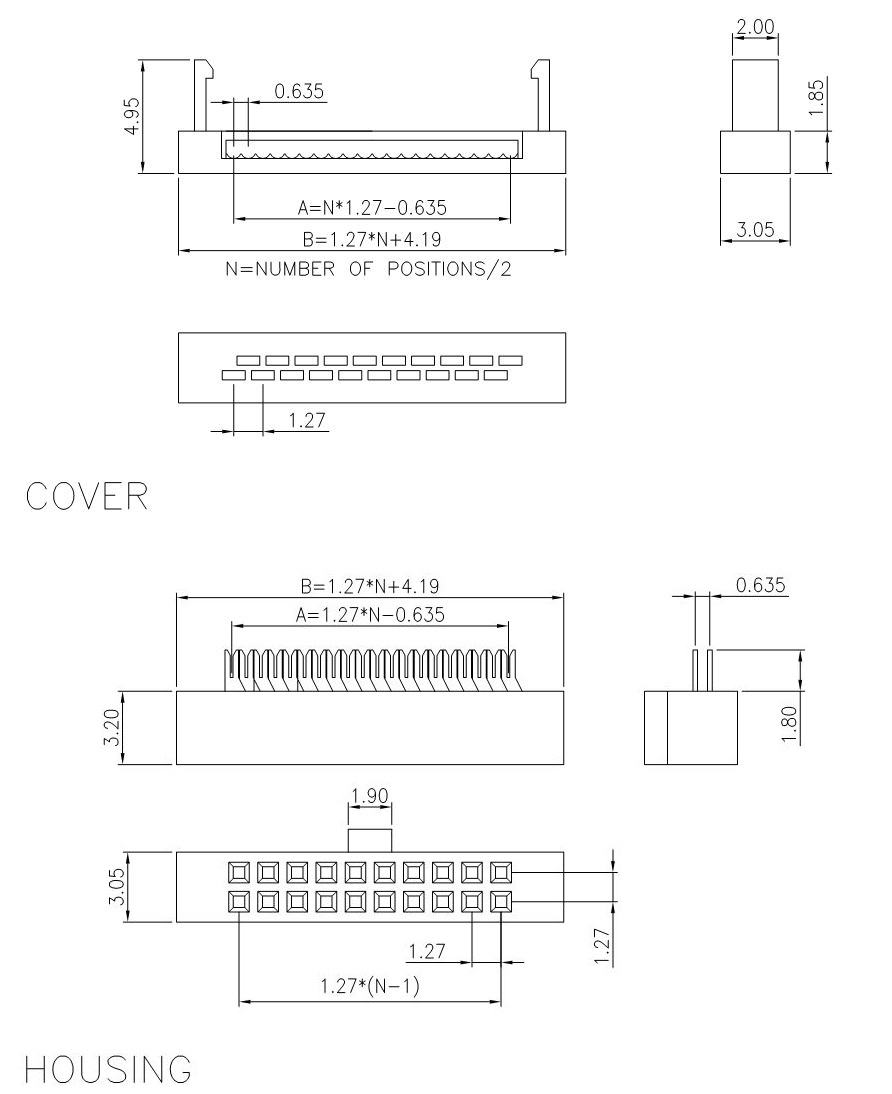

Technical drawing Add to favourites

Female 20pin IDC, pitch 1.27mm for ribbon cable 0.635mm, black color, with fastener, gold flash contacts eqiv. DS1017-01-20NA8

Parameters

Number of pins:	20
Mounting:	Tape mounting (0,635mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	1,27mm
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1017-01-20NA8 RoHS Case style: Rys.MT20 1.27 Datasheet

In stock:

56 pcs.

Quantity of pcs.	2+	10+	28+	140+	560+
Net price (EUR)	0,9183	0,5805	0,4877	0,4211	0,3997

Add to comparison tool Add inquiry (RFQ)

Packaging:
28/140 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1017-01-20NA8 Case style: Rys.MT20 1.27

External warehouse:

1776 pcs.

Quantity of pcs.	28+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,3997

Add to comparison tool Add inquiry (RFQ)

Packaging:
28

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	20
Mounting:	Tape mounting (0,635mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	1,27mm
Type of connector:	Female
