DS1017-20MA2B CONNFLY IDC connector

Symbol Micros: Z MT20 2.0

83796

Z MT20 2.0

Contractor Symbol:

Case : Rys.MT20 2.0

Datasheet

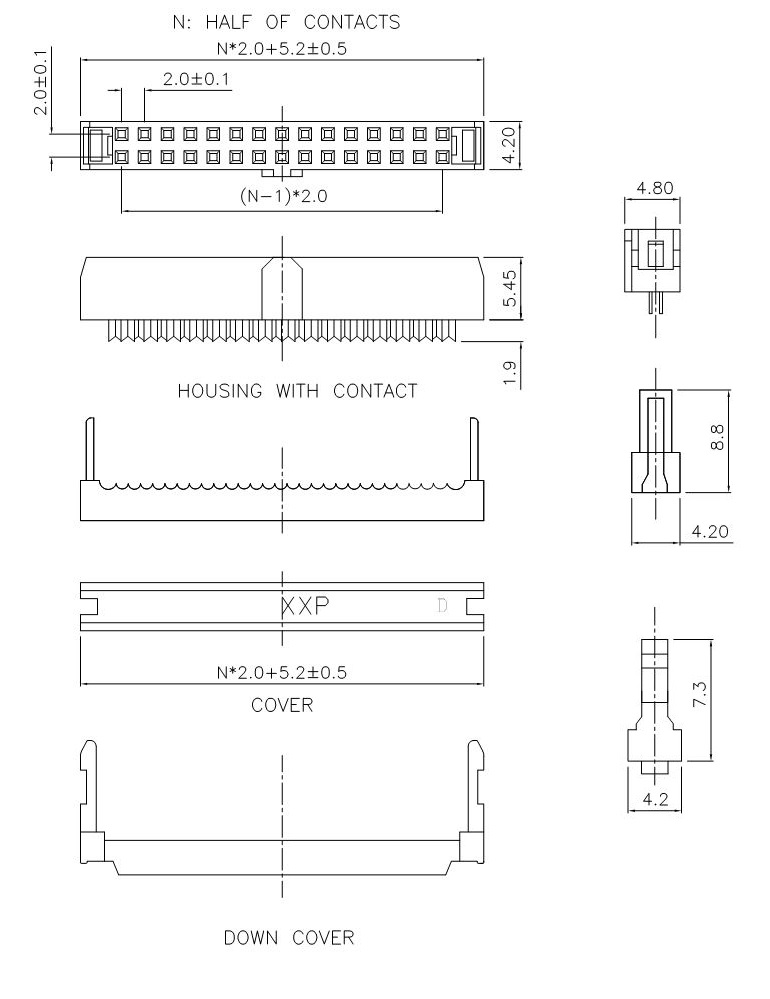

Technical drawing Add to favourites

Female 20pin IDC, pitch 2.00mm for ribbon cable 1.00mm, black color, with fastener, gold flash contacts eqiv. DS1017-20MA2, IDCM20-LF

Parameters

Number of pins:	20
Mounting:	Tape mounting (1mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,0mm
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1017-20MA2B RoHS Case style: Rys.MT20 2.0 Datasheet

In stock:

1192 pcs.

Quantity of pcs.	3+	10+	40+	132+	792+
Net price (EUR)	0,3176	0,2079	0,1536	0,1337	0,1223

Add to comparison tool Add inquiry (RFQ)

Packaging:
132 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1017-20MA2B Case style: Rys.MT20 2.0

External warehouse:

1584 pcs.

Quantity of pcs.	132+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1223

Add to comparison tool Add inquiry (RFQ)

Packaging:
132

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	20
Mounting:	Tape mounting (1mm)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,0mm
Type of connector:	Female
