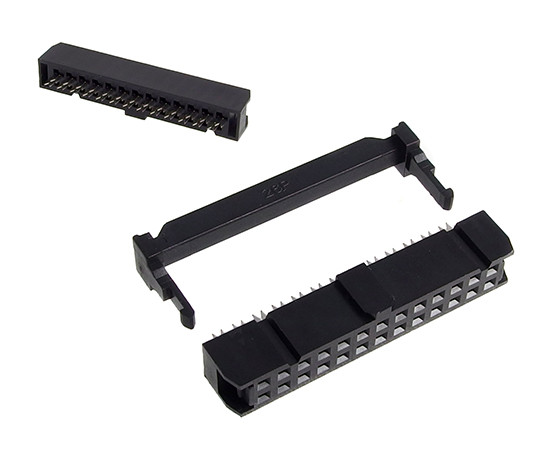

C3001-26YYSB00R HSM IDC connector

Symbol Micros: Z MT26

6595

Z MT26

Contractor Symbol:

Case : Rys.MT26

Datasheet

Add to favourites

Female 26pin IDC, pitch 2.54mm for ribbon cable 1.27mm, black color, with fastener, gold flash contacts eqiv. IDC-26, IDC26, AWP-26, IDC26-LF

Parameters

Number of pins:	26
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	26
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female
