CH254-IDC-26-B-A CONNECTAR IDC connector

Symbol Micros: Z MT26-C

21107

Z MT26-C

Contractor Symbol:

Case : Rys.MT26-C

Datasheet

Technical drawing Technical drawing Add to favourites

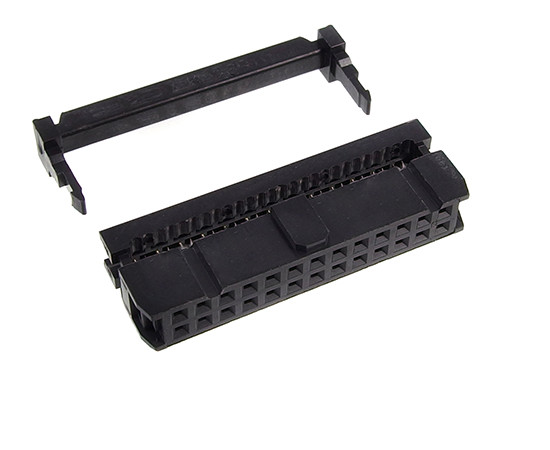

Female 26pin IDC, pitch 2.54mm for ribbon cable 1.27mm, black color, with fastener, gold flash contacts eqiv. IDC-26, IDC26, AWP-26, IDC26-LF

Parameters

Number of pins:	26
Mounting:	Tape mounting (1,27mm)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Female

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-IDC-26-B-A RoHS Case style: Rys.MT26-C Datasheet

In stock:

23440 pcs.

Quantity of pcs.	5+	20+	84+	252+	1000+
Net price (EUR)	0,2650	0,1327	0,0823	0,0669	0,0589

Add to comparison tool Add inquiry (RFQ)

Packaging:
84/1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1016-26MA2BB Case style: Rys.MT26-C

External warehouse:

36072 pcs.

Quantity of pcs.	84+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0589

Add to comparison tool Add inquiry (RFQ)

Packaging:
84

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-20

Quantity of pcs.: 10000

• Parameters

Number of pins:	26
Mounting:	Tape mounting (1,27mm)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Female
