CH254-IDC-40-B-A CONNECTAR IDC connector

Symbol Micros: Z MT40-C

21109

Z MT40-C

Contractor Symbol:

Case : Rys.MT40-C

Datasheet

Technical drawing Technical drawing Add to favourites

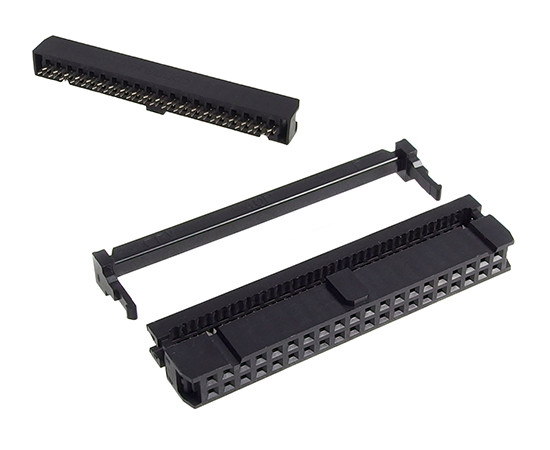

Female 40pin IDC, pitch 2.54mm for ribbon cable 1.27mm, black color, with fastener, gold flash contacts eqiv. IDC-40, IDC40, AWP-40, IDC40-LF

Parameters

Number of pins:	40
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-IDC-40-B-A RoHS Case style: Rys.MT40-C Datasheet

In stock:

1960 pcs.

Quantity of pcs.	5+	20+	60+	300+	1000+
Net price (EUR)	0,2922	0,1596	0,1160	0,0902	0,0833

Add to comparison tool Add inquiry (RFQ)

Packaging:
60/1000 Quantity (multiple: 1)

- +

Manufacturer:: JILN Manufacturer part number: 5314-40YBSOBW01 Case style: Rys.MT40-C

External warehouse:

4340 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	0,1554

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1016-40MA2BB Case style: Rys.MT40-C

External warehouse:

3080 pcs.

Quantity of pcs.	60+ (Please wait for the order confirmation)
Net price (EUR)	0,0853

Add to comparison tool Add inquiry (RFQ)

Packaging:
60

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-30

Quantity of pcs.: 3000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-12-15

Quantity of pcs.: 5000

• Parameters

Number of pins:	40
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female
