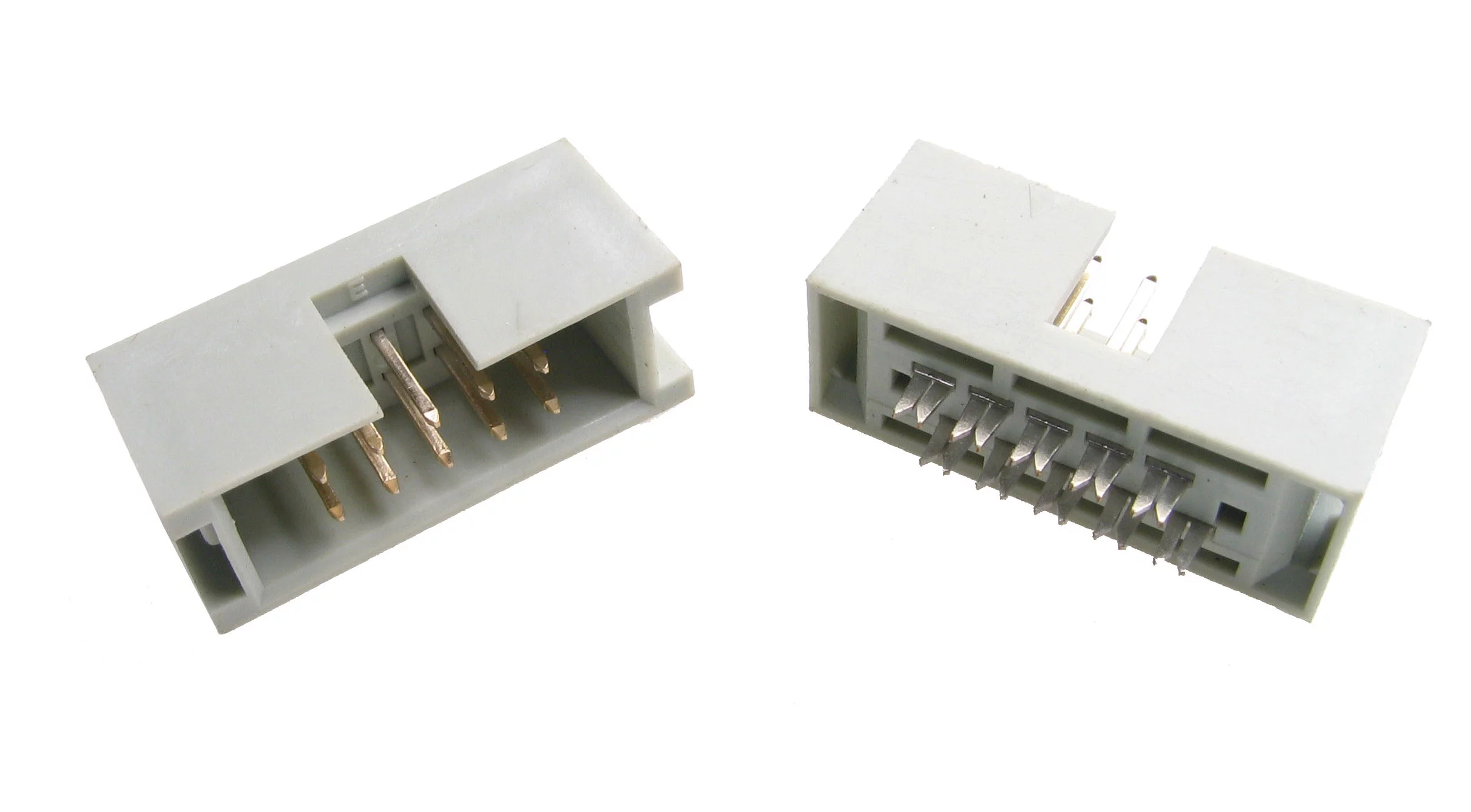

DS1015-10NN2A CONNFLY IDC connector

Symbol Micros: Z MTW10

17642

Z MTW10

Contractor Symbol:

Case : Rys.MTW10

Datasheet

Technical drawing Technical drawing Add to favourites

male 10pin IDC, pitch 2.54mm, grey, for ribbon cable 28AWG selective gold plated, eqiv. IDM10-LF, AWHP-10B

Parameters

Number of pins:	10
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-10NN2A RoHS Case style: Rys.MTW10 Datasheet

In stock:

313 pcs.

Quantity of pcs.	2+	10+	40+	100+	428+
Net price (EUR)	0,4782	0,2879	0,2248	0,2056	0,1910

Add to comparison tool Add inquiry (RFQ)

Packaging:
428 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-10NN2A Case style: Rys.MTW10

External warehouse:

5036 pcs.

Quantity of pcs.	476+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1910

Add to comparison tool Add inquiry (RFQ)

Packaging:
476

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	10
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
