DS1015-20NN2A CONNFLY IDC connector

Symbol Micros: Z MTW20

23259

Z MTW20

Contractor Symbol:

Case : Rys.MTW20

Datasheet

Technical drawing Technical drawing Add to favourites

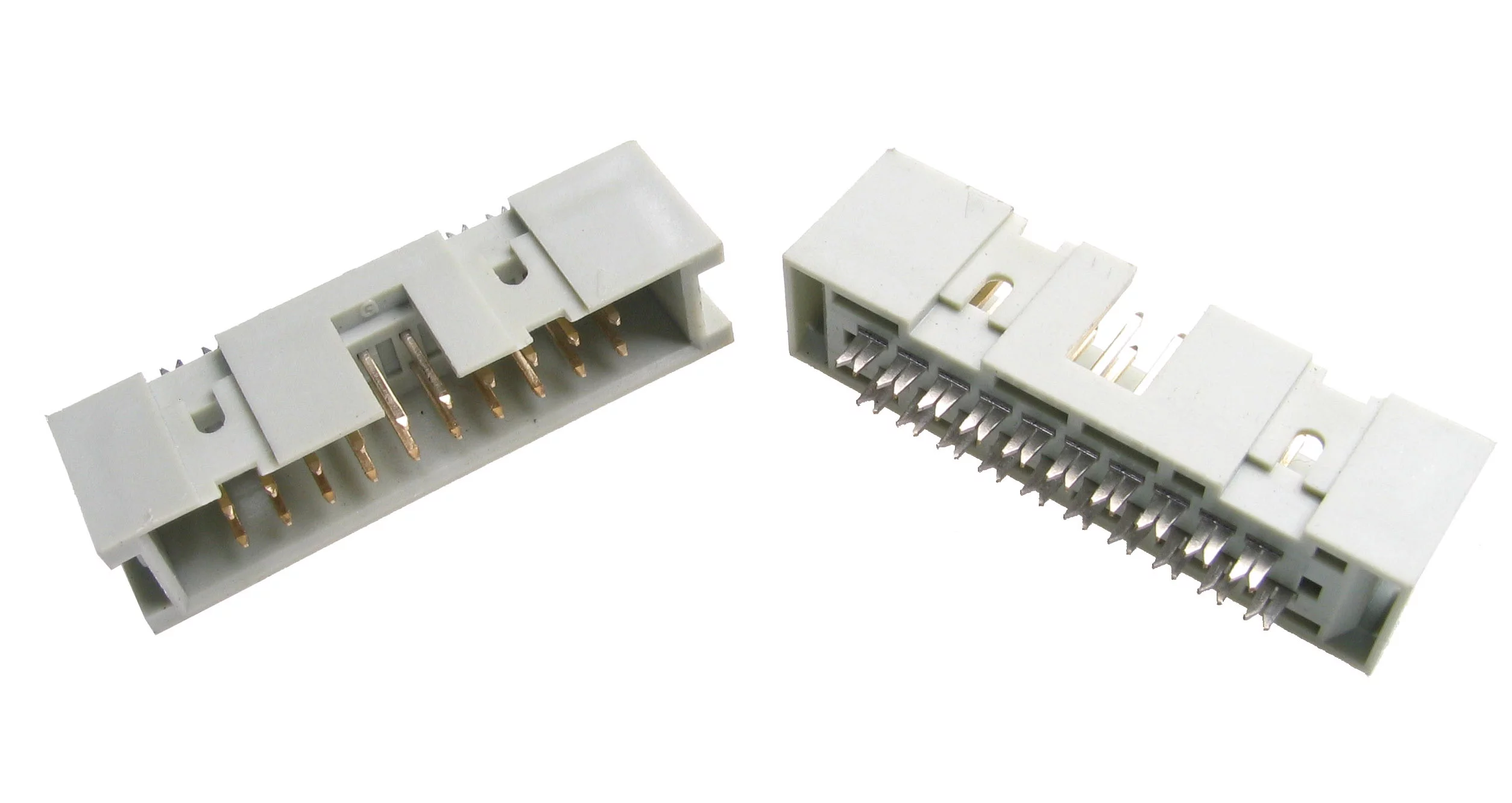

male 20pin IDC, pitch 2.54mm, grey, for ribbon cable 28AWG selective gold plated, eqiv. IDM20-LF, AWHP-20B

Parameters

Number of pins:	20
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1015-20NN2A RoHS Case style: Rys.MTW20

In stock:

83 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,9288	0,5885	0,4656	0,4230	0,4041

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-20NN2A Case style: Rys.MTW20

External warehouse:

1900 pcs.

Quantity of pcs.	308+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4041

Add to comparison tool Add inquiry (RFQ)

Packaging:
308

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	20
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male
