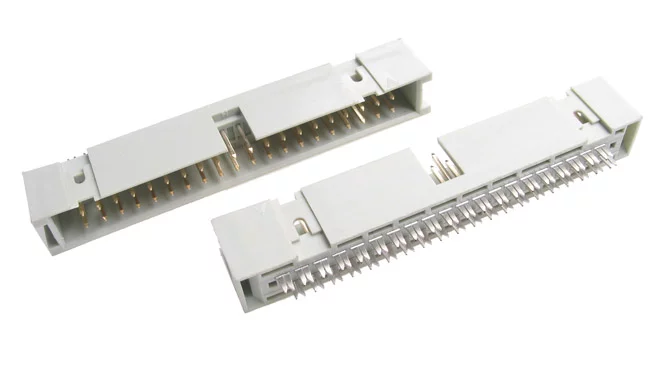

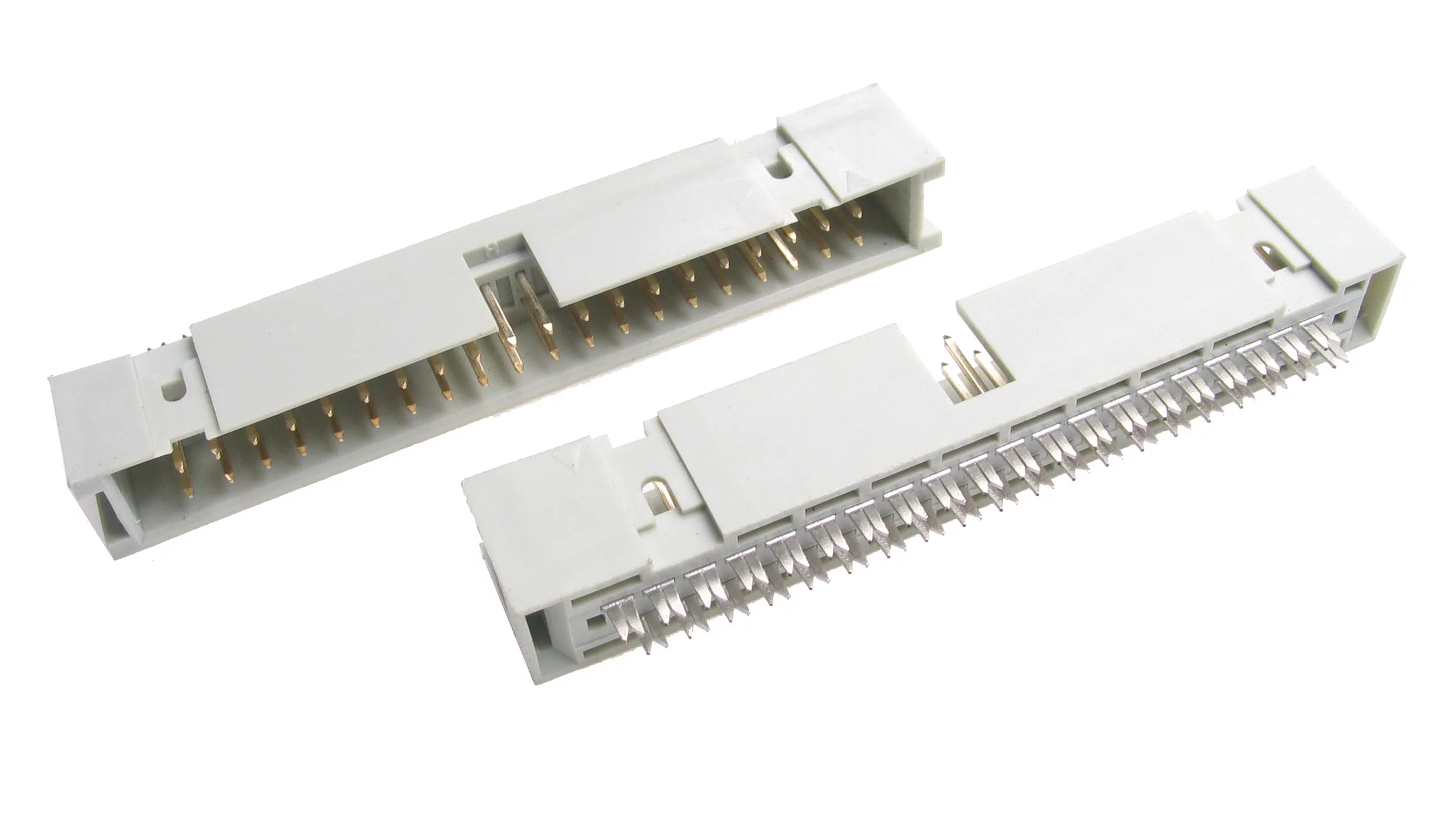

DS1015-40NN2A CONNFLY IDC connector

Symbol Micros: Z MTW40

23262

Z MTW40

Contractor Symbol:

Case : Rys.MTW40

Datasheet

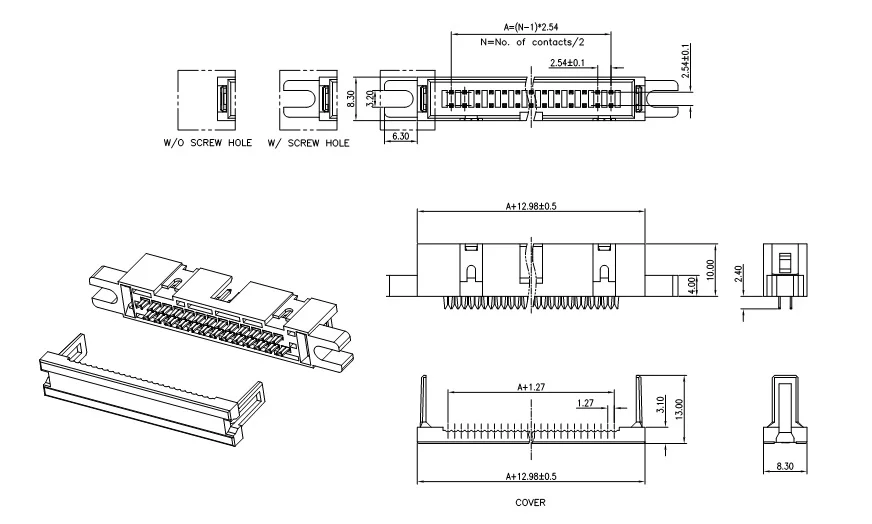

Technical drawing Technical drawing Add to favourites

male 40pin IDC, pitch 2.54mm, grey, for ribbon cable 28AWG selective gold plated, eqiv. IDM40-LF, AWHP-40B

Parameters

Number of pins:	40
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-40NN2A Case style: Rys.MTW40

External warehouse:

504 pcs.

Quantity of pcs.	168+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4557

Add inquiry (RFQ)

Packaging:
168

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	40
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male
