DS1012-34LNN0A CONNFLY IDC connector

Symbol Micros: Z MTZ34

23267

Z MTZ34

Contractor Symbol:

Case : Rys.MTZ34

Datasheet

Technical drawing Add to favourites

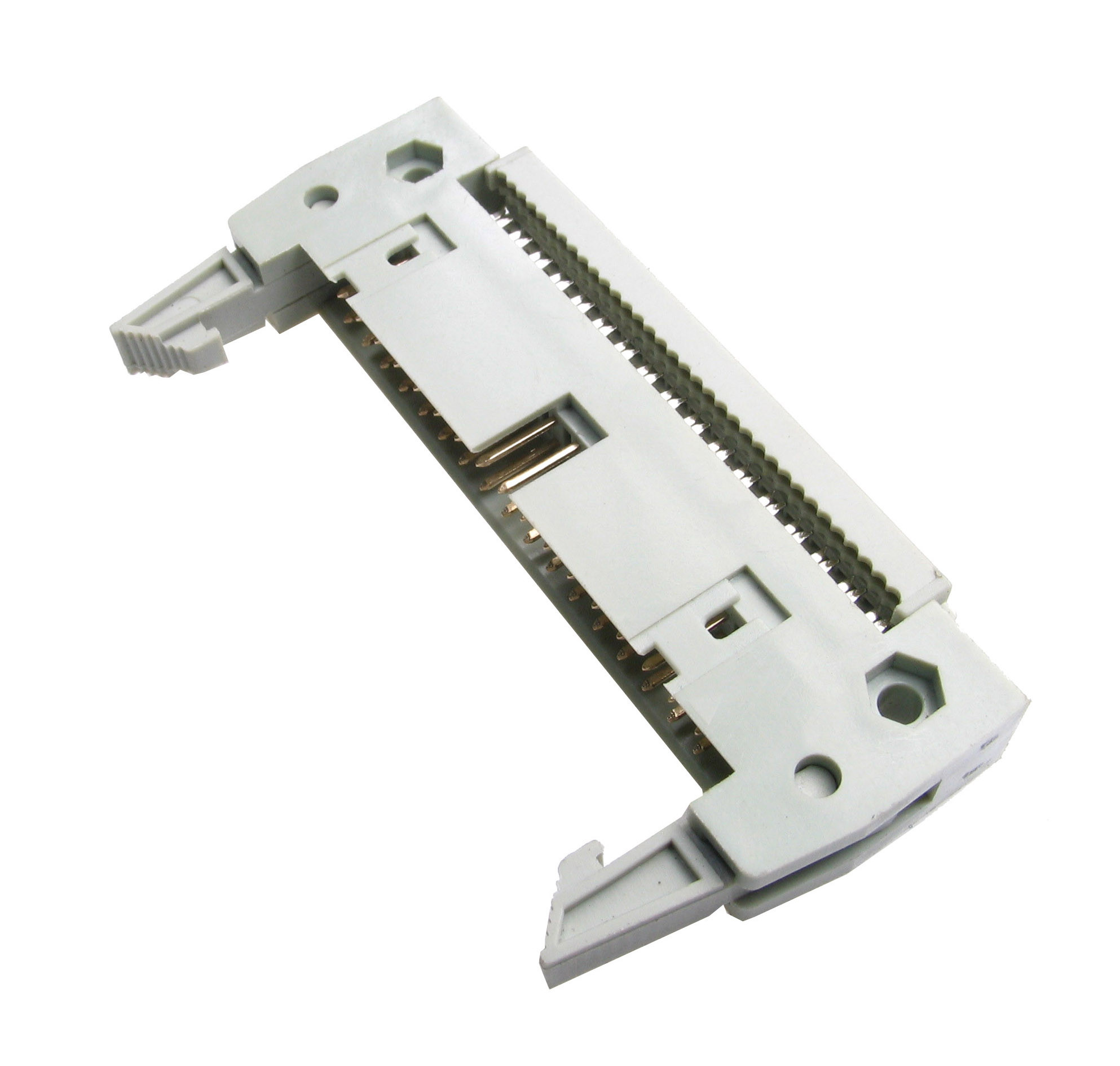

male 34pin IDC, pitch 2.54mm, grey, with ejector, for ribbon cable 28AWG selective gold plated, eqiv. IDE34

Parameters

Number of pins:	34
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1012-34LNN0A RoHS Case style: Rys.MTZ34

In stock:

57 pcs.

Quantity of pcs.	1+	3+	10+	50+	78+
Net price (EUR)	1,1444	0,8636	0,7066	0,6162	0,6019

Add to comparison tool Add inquiry (RFQ)

Packaging:
78 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1012-34LNN2A8 Case style: Rys.MTZ34

External warehouse:

894 pcs.

Quantity of pcs.	84+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6019

Add to comparison tool Add inquiry (RFQ)

Packaging:
84

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	34
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
