2205-7048 MOLEX Cable connector

Symbol Micros: Z MX-0022057048

87132

Z MX-0022057048

Contractor Symbol:

Case : Rys.0022057048

Datasheet

Technical drawing Add to favourites

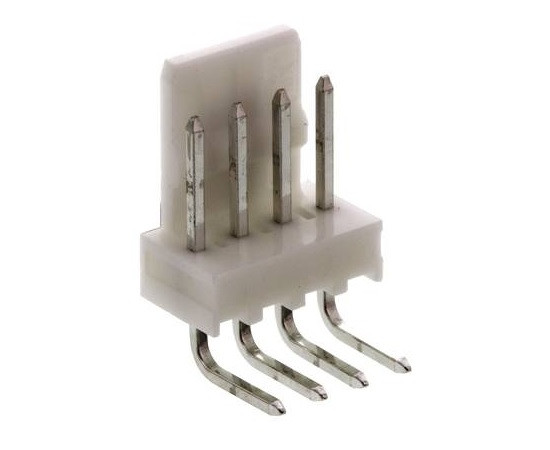

Socket; male; angled; THT; 4pin; pitch: 2,54mm; 4A; 250V; white color;

Parameters

Number of pins:	4
Operating voltage:	250V
Current:	4A
Manufacturer:	MOLEX
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0022057048 Case style: Rys.0022057048

External warehouse:

25597 pcs.

Quantity of pcs.	1425+ (Please wait for the order confirmation)
Net price (EUR)	0,1516

Add to comparison tool Add inquiry (RFQ)

Packaging:
1425

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	4
Operating voltage:	250V
Current:	4A
Manufacturer:	MOLEX
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,54mm
