0039281223 MOLEX

Symbol Micros: Z MX-0039281223

413771

Z MX-0039281223

Contractor Symbol:

Case : Rys.0039281223

Datasheet

Technical drawing Add to favourites

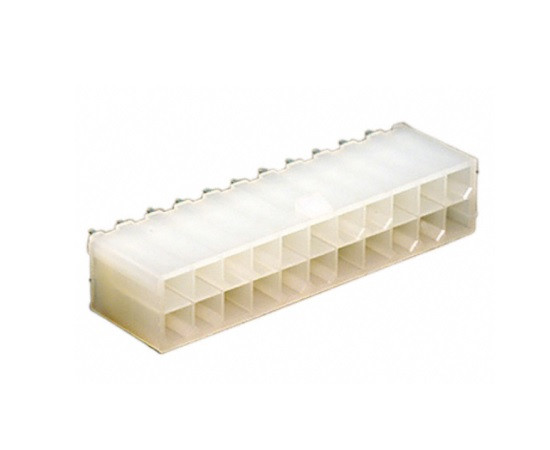

Conn Wire to Board HDR 22Power POS 4.2mm Solder ST Top Entry Thru-Hole Bag

Parameters

Number of pins:	22
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	4,2mm

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0039281223 Case style: Rys.0039281223

External warehouse:

7578 pcs.

Quantity of pcs.	200+ (Please wait for the order confirmation)
Net price (EUR)	0,8027

Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	22
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	4,2mm
