0039300100 MOLEX

Symbol Micros: Z MX-0039300100

413948

Z MX-0039300100

Contractor Symbol:

Case : Rys.0039300100

Datasheet

Technical drawing Add to favourites

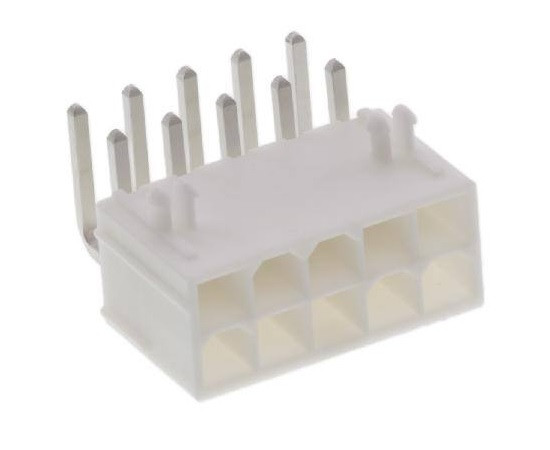

Conn Wire to Board HDR 10Power POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr. Bag

Parameters

Number of pins:	10
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Male
Terminal pitch [m]:	4,2mm

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0039300100 Case style: Rys.0039300100

External warehouse:

3426 pcs.

Quantity of pcs.	150+ (Please wait for the order confirmation)
Net price (EUR)	1,3404

Add inquiry (RFQ)

Packaging:
150

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	10
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Male
Terminal pitch [m]:	4,2mm
