0039300180 MOLEX

Symbol Micros: Z MX-0039300180

413952

Z MX-0039300180

Contractor Symbol:

Case : Rys.0039300180

Datasheet

Technical drawing Add to favourites

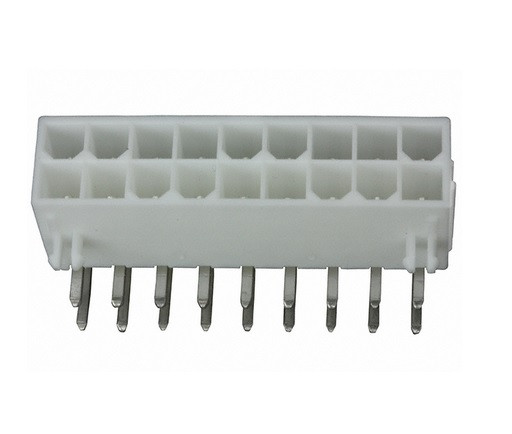

Conn Wire to Board HDR 18 POS 4.2mm Solder RA Side Entry Thru-Hole Bag

Parameters

Number of pins:	18
Manufacturer:	MOLEX
Connector:	Socket
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
Terminal pitch [m]:	4,2mm

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0039300180 Case style: Rys.0039300180

External warehouse:

600 pcs.

Quantity of pcs.	150+ (Please wait for the order confirmation)
Net price (EUR)	1,1040

Add inquiry (RFQ)

Packaging:
75

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	18
Manufacturer:	MOLEX
Connector:	Socket
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
Terminal pitch [m]:	4,2mm
