0039300200 MOLEX

Symbol Micros: Z MX-0039300200

413953

Z MX-0039300200

Contractor Symbol:

Case : Rys.0039300200

Datasheet

Add to favourites

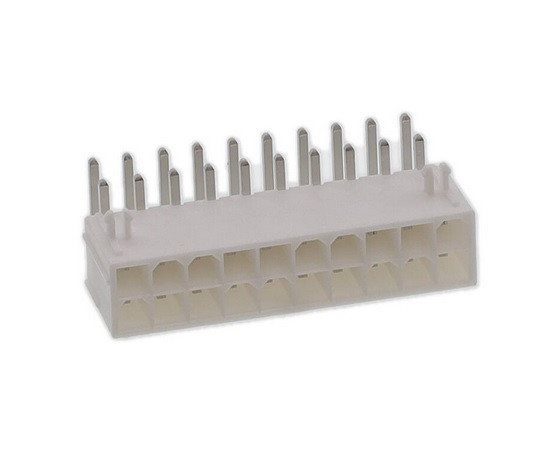

Conn Wire to Board HDR 20 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr Bag

Parameters

Type of pin configuration:	2x10
Number of pins:	20
Connector:	Socket
Manufacturer:	MOLEX
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x10
Number of pins:	20
Connector:	Socket
Manufacturer:	MOLEX
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
