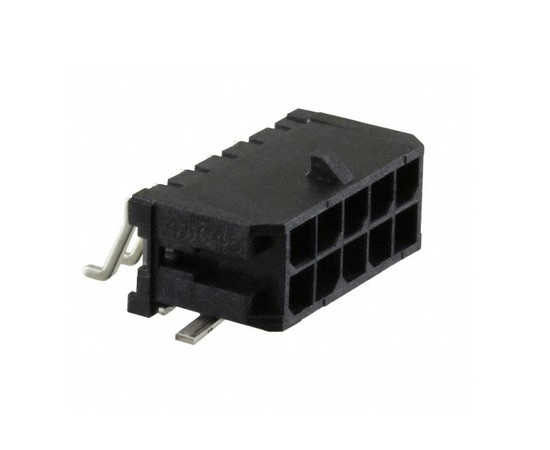

0430451009 MOLEX

Symbol Micros: Z MX-0430451009

417719

Z MX-0430451009

Contractor Symbol:

Case : Rys.0430451009

Datasheet

Technical drawing Add to favourites

Conn Wire to Board HDR 10Power POS 3mm Solder RA Side Entry SMD Micro-Fit 3.0 T/R

Parameters

Number of pins:	10
Mounting:	SMD
Spatial orientation:	Angled
Manufacturer:	MOLEX
Connector:	Socket
Operating voltage:	600V
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	10
Mounting:	SMD
Spatial orientation:	Angled
Manufacturer:	MOLEX
Connector:	Socket
Operating voltage:	600V
Type of connector:	Male
Current:	8,5A
Terminal pitch [m]:	3mm
