0532610371 MOLEX

Symbol Micros: Z MX-0532610371

420265

Z MX-0532610371

Contractor Symbol:

Case : Rys.0532610371

Datasheet

Technical drawing Add to favourites

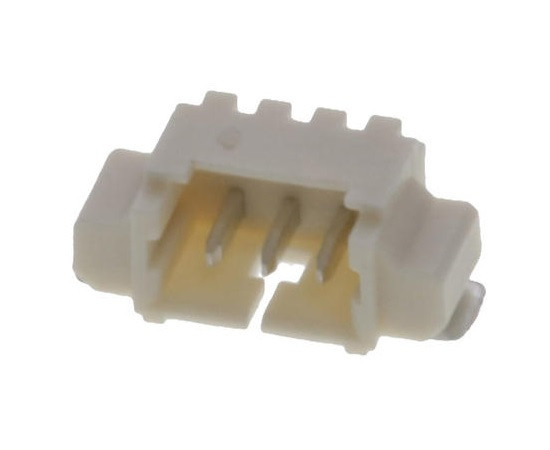

Conn Shrouded Header (4 Sides) HDR 3 POS 1.25mm Solder RA Side Entry SMD PicoBlade T/R

Parameters

Number of pins:	3
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	SMD
Spatial orientation:	Horizontal
Operating voltage:	125V
Current:	1A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	3
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	SMD
Spatial orientation:	Horizontal
Operating voltage:	125V
Current:	1A
Type of connector:	Male
Terminal pitch [m]:	1,25mm
