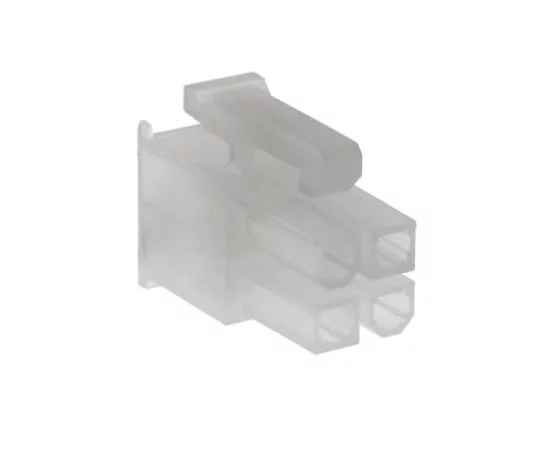

39-01-2040 MOLEX Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-01-2040
Contractor Symbol:
Case : Rys.39-01-2040
Technical drawing Add to favourites
Plug; female; 4pin (2x2); for cable; pitch: 4,2mm; w/o pins, 600V, UL94V-2; eqiv. Z KWF5150-04
Parameters
Type of pin configuration: 2x2
Number of pins: 4
Connector: Plug
Manufacturer: MOLEX
Spatial orientation: Straight
Mounting: Cables
Type of connector: Female


Item available on request
Type of pin configuration: 2x2
Number of pins: 4
Connector: Plug
Manufacturer: MOLEX
Spatial orientation: Straight
Mounting: Cables
Type of connector: Female
