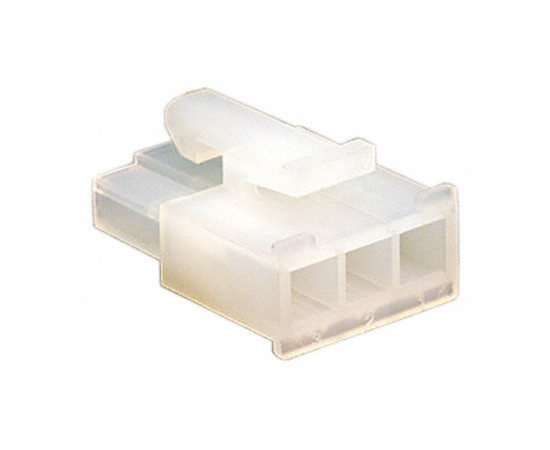

39-01-4031 MOLEX  Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-01-4031

405557

Z MX-39-01-4031

Contractor Symbol:

Case : Rys.39-01-4031

Datasheet

Technical drawing Add to favourites

Plug; female; 3pin (1x3); for cable; pitch: 4,2mm; w/o pins, 600V, UL94V-0

Parameters

Number of pins:	3
Current:	13A
Manufacturer:	MOLEX
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Operating voltage:	600V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	3
Current:	13A
Manufacturer:	MOLEX
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Operating voltage:	600V
Type of connector:	Female
Terminal pitch [m]:	4,2mm
