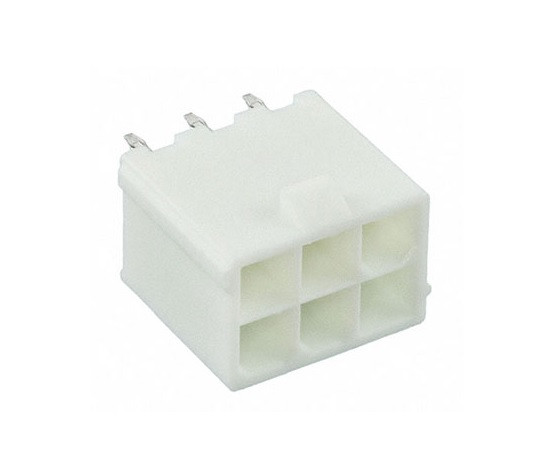

39-28-8060 MOLEX Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-28-8060

405569

Z MX-39-28-8060

Contractor Symbol:

Case : Rys.39-28-8060

Datasheet

Technical drawing Add to favourites

Socket; male; 6pin (2x3); straight; THT; pitch 4,2mm; w/o pins; 9A; UL94V-0 eqiv. MX-5566-06A-210

Parameters

Number of pins:	6
Current:	9A
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	600V

All parameters

Manufacturer:: MOLEX Manufacturer part number: 39288060 Case style: Rys.39-28-8060

External warehouse:

1550 pcs.

Quantity of pcs.	25+ (Please wait for the order confirmation)
Net price (EUR)	0,4076

Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: MOLEX Manufacturer part number: 39288060 Case style: Rys.39-28-8060

External warehouse:

68000 pcs.

Quantity of pcs.	500+ (Please wait for the order confirmation)
Net price (EUR)	0,4832

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	6
Current:	9A
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	600V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
