39-29-1088 MOLEX Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-29-1088

405574

Z MX-39-29-1088

Contractor Symbol:

Case : Rys.39-29-1088

Datasheet

Technical drawing Add to favourites

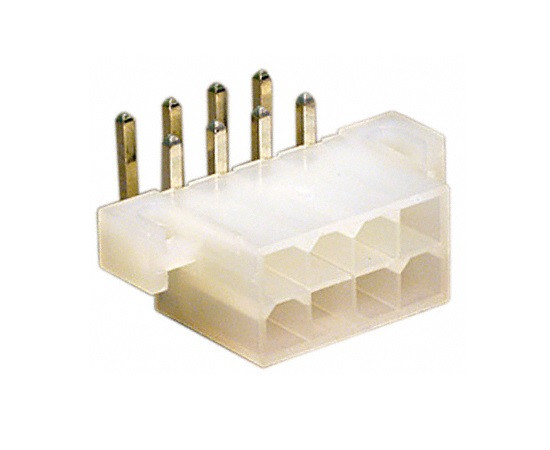

Socket; male; 8pin (2x3); angled; THT; pitch 4,2mm; w/o pins; 9A; UL94V-2; eqiv. MX-5569-08A1

Parameters

Number of pins:	8
Current:	13A
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Operating voltage:	600V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	8
Current:	13A
Manufacturer:	MOLEX
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Operating voltage:	600V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
