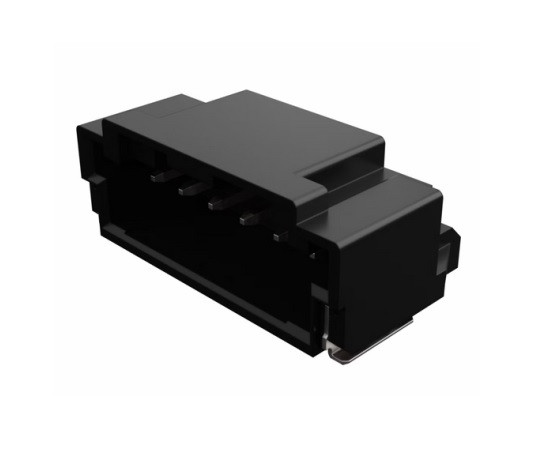

5023520601 MOLEX Cable connector

Symbol Micros: Z MX-5023520601

431362

Z MX-5023520601

Contractor Symbol:

Case : Rys.5023520601

Datasheet

Add to favourites

Conn Shrouded Header (4 Sides) HDR 6 POS 2mm Solder RA SMD DuraClik Automotive T/R

Parameters

Number of pins:	6
Manufacturer:	MOLEX
Current:	3A
Operating voltage:	125V
Spatial orientation:	Angled
Mounting:	SMD
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	6
Manufacturer:	MOLEX
Current:	3A
Operating voltage:	125V
Spatial orientation:	Angled
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
