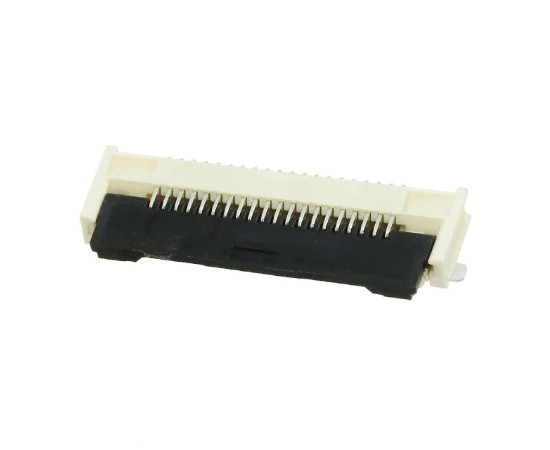

Connector ZIF FFC / FPC 0.5mm - 20pin, MOLEX 505110-2091 EASYON

Symbol Micros: Z MX-505110-2091

286354

Z MX-505110-2091

Contractor Symbol:

Case : Rys.505110-2091

Datasheet

Add to favourites

50V max.; 0.5A max; angled, SMD, bottom conact

Parameters

Number of pins:	20
Spatial orientation:	Angled
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	20
Spatial orientation:	Angled
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm
