N109 CONNECTAR

Symbol Micros: Z N109

170397

Z N109

Contractor Symbol:

Case : Rys.N109

Datasheet

Technical drawing Add to favourites

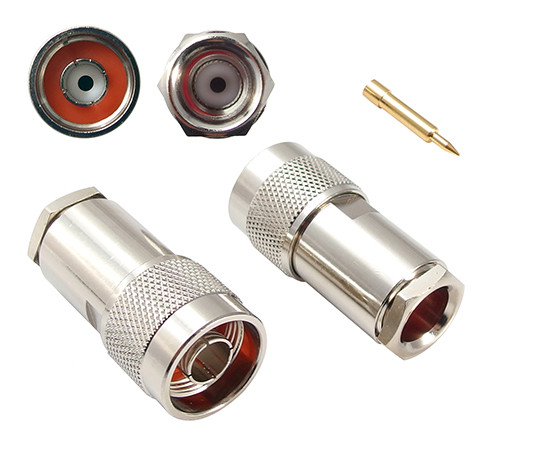

plug N male, straight, clamp type for cable HDF400

Parameters

Connector:	Plug
Type of connector:	Male
Mounting:	Clamping
Spatial orientation:	Straight
Contact plating:	Gold-Plated

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Connector:	Plug
Type of connector:	Male
Mounting:	Clamping
Spatial orientation:	Straight
Contact plating:	Gold-Plated
