H3967-06PW0000R HSM Cable connector

Symbol Micros: Z PHZ06

19495

Z PHZ06

Contractor Symbol:

Case : Rys.PHZ06

Datasheet

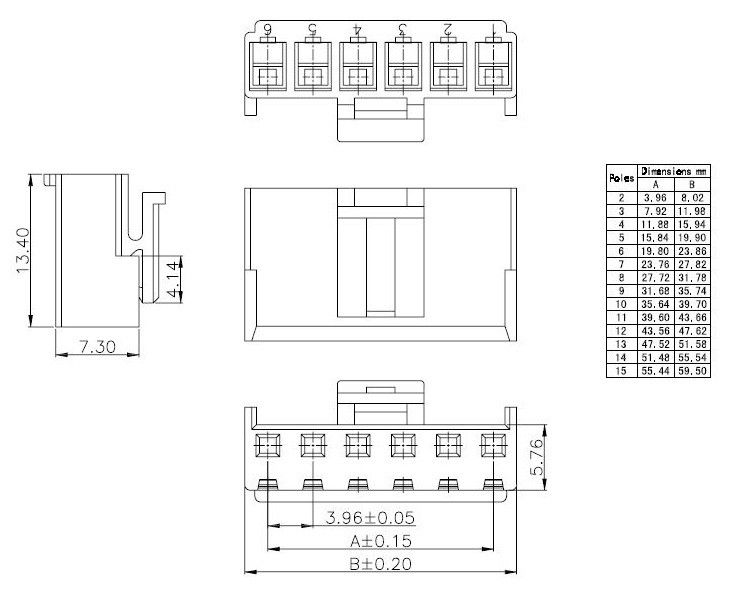

Technical drawing Add to favourites

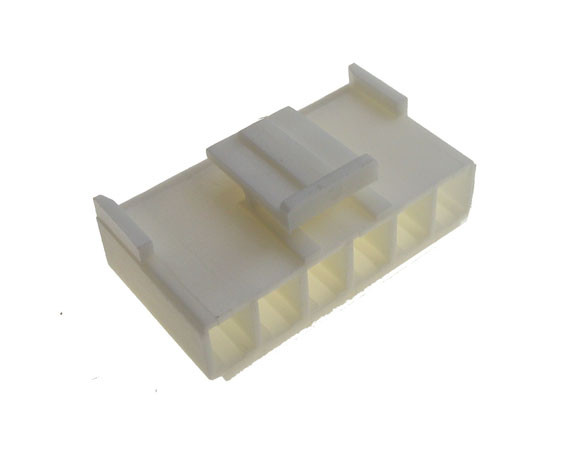

female plug; 6 pin; pitch: 3,96mm; white colour eqiv.: PHZ06

Parameters

Number of pins:	6
Connector:	Plug
Current:	7A
Type of connector:	Female
Operating voltage:	250V
Terminal pitch [m]:	3,96mm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-15

Quantity of pcs.: 4000

• Parameters

Number of pins:	6
Connector:	Plug
Current:	7A
Type of connector:	Female
Operating voltage:	250V
Terminal pitch [m]:	3,96mm
