JVT1120WN2-02SNR-D JVT Złącze kablowe

Symbol Micros: Z PWZ02r

16406

Z PWZ02r

Contractor Symbol:

Case : Rys.PWZ02r

Datasheet

Technical drawing Add to favourites

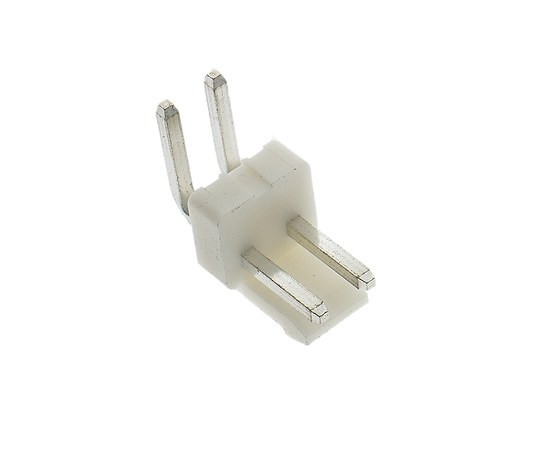

male; angled; with latch; PCB 2 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ02R

Parameters

Number of pins:	2
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [mm]:	3,96mm

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ02r Datasheet

In stock:

26010 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1298	0,0520	0,0302	0,0252	0,0236

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-22

Quantity of pcs.: 20000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-02-19

Quantity of pcs.: 50000

• Parameters

Number of pins:	2
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [mm]:	3,96mm
