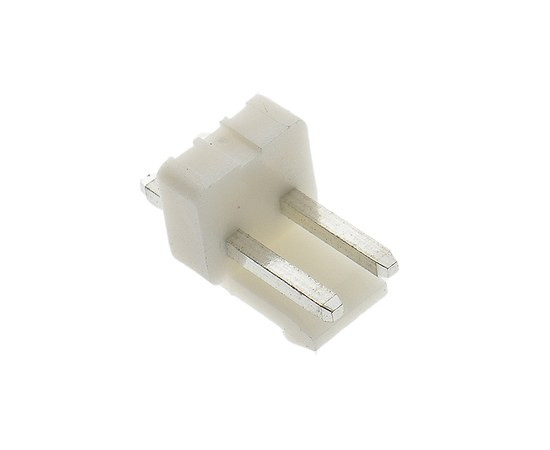

Cable connector CONNECTAR

Symbol Micros: Z PWZ02s

19471

Z PWZ02s

Contractor Symbol:

Case : Rys.PWZ02s

Datasheet

Technical drawing Add to favourites

male; striaght; with latch; PCB 2 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ02S

Parameters

Number of pins:	2
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ02s Datasheet

In stock:

10649 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,1142	0,0454	0,0266	0,0197	0,0176

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 10)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-09-30

Quantity of pcs.: 72000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-09-30

Quantity of pcs.: 30000

• Parameters

Number of pins:	2
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
