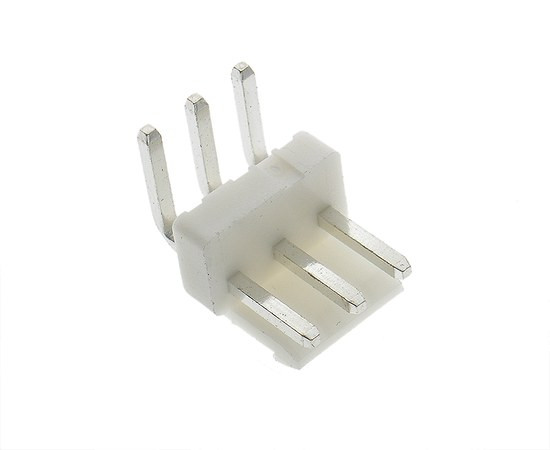

JVT1120WN2-03SNR-D JVT Cable connector

Symbol Micros: Z PWZ03r

19482

Z PWZ03r

Contractor Symbol:

Case : Rys.PWZ03r

Datasheet

Technical drawing Add to favourites

male; angled; with latch; PCB 3 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ03R

Parameters

Number of pins:	3
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ03r Datasheet

In stock:

7500 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2080	0,0831	0,0484	0,0404	0,0378

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/10000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	3
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
