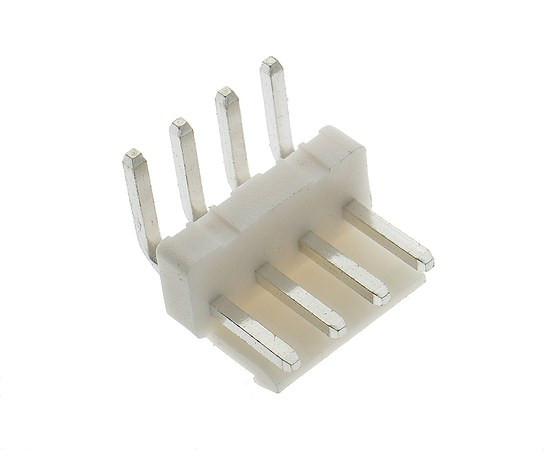

JVT1120WN2-04SNR-D JVT Cable connector

Symbol Micros: Z PWZ04r

19483

Z PWZ04r

Contractor Symbol:

Case : Rys.PWZ04r

Datasheet

Technical drawing Add to favourites

male; angled; with latch; PCB 4 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ04R

Parameters

Number of pins:	4
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [mm]:	3,96mm

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ04r Datasheet

In stock:

3550 pcs.

Quantity of pcs.	5+	20+	100+	500+	4000+
Net price (EUR)	0,2192	0,1113	0,0676	0,0537	0,0487

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/4000 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ04r Datasheet

In stock:

150 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2213	0,1118	0,0674	0,0533	0,0492

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [mm]:	3,96mm
