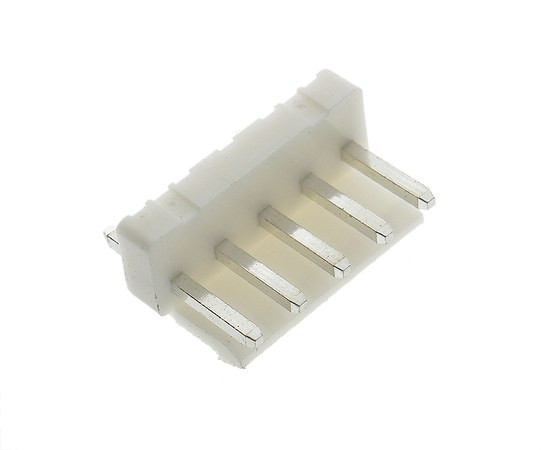

W3966-05PSTW00R HSM Cable connector

Symbol Micros: Z PWZ05s

19474

Z PWZ05s

Contractor Symbol:

Case : Rys.PWZ05s

Datasheet

Technical drawing Add to favourites

male; striaght; with latch; PCB 5 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ05S

Parameters

Number of pins:	5
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [mm]:	3,96mm

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ05s Datasheet

In stock:

8955 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2245	0,1134	0,0683	0,0540	0,0499

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/10000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1073-5MVW6 Case style: Rys.PWZ05s

External warehouse:

10000 pcs.

Quantity of pcs.	1000+ (Please wait for the order confirmation)
Net price (EUR)	0,0499

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	5
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [mm]:	3,96mm
