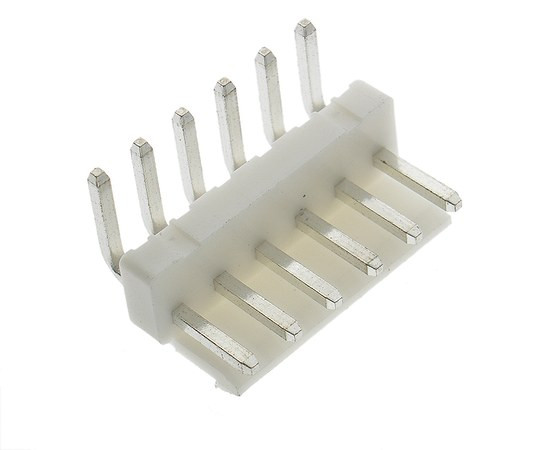

W3966-06PRTW00R HSM Cable connector

Symbol Micros: Z PWZ06r

19485

Z PWZ06r

Contractor Symbol:

Case : Rys.PWZ06r

Datasheet

Technical drawing Add to favourites

male; angled; with latch; PCB 6 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ06R

Parameters

Number of pins:	6
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ06r Datasheet

In stock:

1000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2462	0,1353	0,0896	0,0746	0,0701

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	6
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
