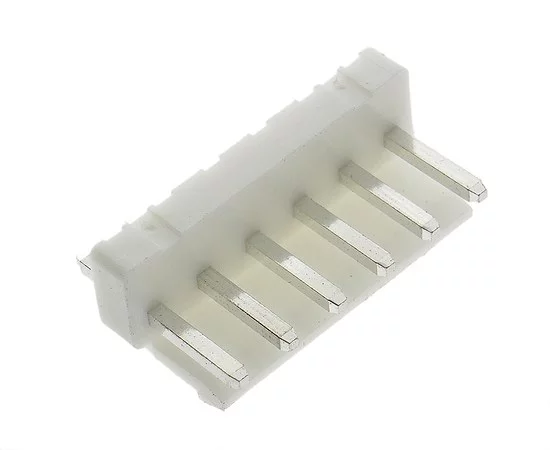

W3966-06PSTW00R HSM Cable connector

Symbol Micros: Z PWZ06s

19475

Z PWZ06s

Contractor Symbol:

Case : Rys.PWZ06s

Datasheet

Technical drawing Add to favourites

male; striaght; with latch; PCB 6 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ06S

Parameters

Number of pins:	6
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [m]:	3,96mm

All parameters

Manufacturer:: HSM. Manufacturer part number:   Case style: Rys.PWZ06s Datasheet

In stock:

1045 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2548	0,1403	0,0928	0,0774	0,0727

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-15

Quantity of pcs.: 2000

• Parameters

Number of pins:	6
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [m]:	3,96mm
