JVT1120WN2-08SNR-D JVT Cable connector

Symbol Micros: Z PWZ08r

19487

Z PWZ08r

Contractor Symbol:

Case : Rys.PWZ08r

Datasheet

Technical drawing Add to favourites

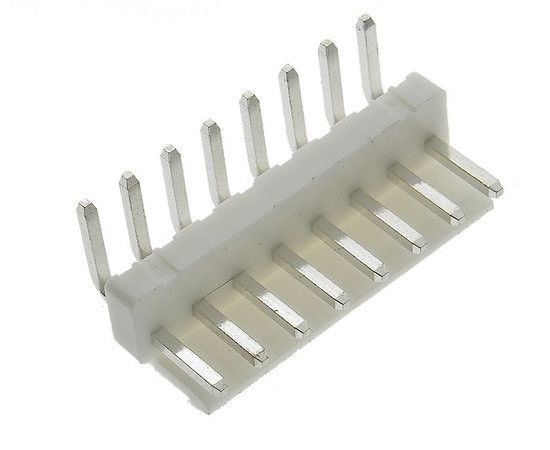

male; angled; with latch; PCB 8 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ08R

Parameters

Number of pins:	8
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.PWZ08r

In stock:

1000 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3322	0,1846	0,1457	0,1322	0,1280

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
