S6B-XH-A-1 (LF)(SN) JST

Symbol Micros: Z S6B-XH-A-1

481179

Z S6B-XH-A-1

Contractor Symbol:

Case : Rys.S6B-XH-A-1

Datasheet

Add to favourites

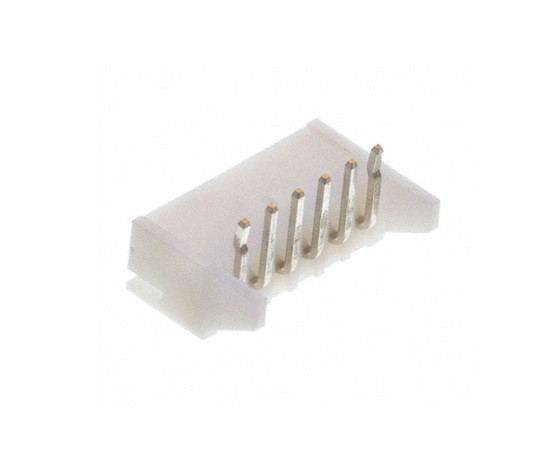

Conn Shrouded Header HDR 6 POS 2.5mm Solder RA Thru-Hole Box

Parameters

Number of pins:	6
Manufacturer:	JST
Mounting:	THT
Spatial orientation:	Angled
Connector:	Socket
Current:	3A
Operating voltage:	250V

All parameters

Manufacturer:: Japan Science and Technology Manufacturer part number: S6B-XH-A-1 (LF)(SN) Case style: Rys.S6B-XH-A-1

External warehouse:

1970 pcs.

Quantity of pcs.	1500+ (Please wait for the order confirmation)
Net price (EUR)	0,1018

Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	6
Manufacturer:	JST
Mounting:	THT
Spatial orientation:	Angled
Connector:	Socket
Current:	3A
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [m]:	2,5mm
