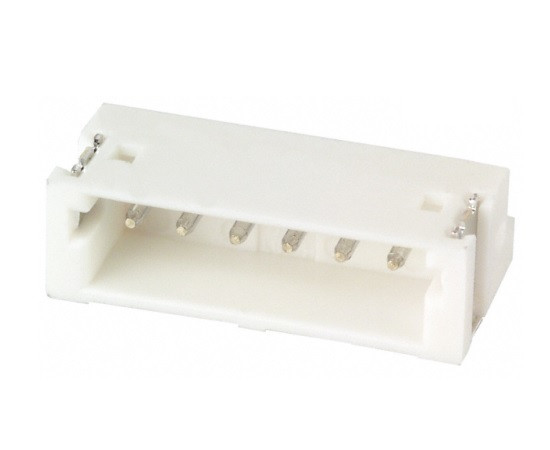

S6B-ZR-SM4A-TF JST Cable connector

Symbol Micros: Z S6B-ZR-SM4A-TF

411628

Z S6B-ZR-SM4A-TF

Contractor Symbol:

Case : Rys.S6B-ZR-SM4A-TF

Datasheet

Add to favourites

socket; male; ZH series; 6 pin; 1A; 50VAC; pitch 1.5mm; horizontal; pin: brass; wafer: PA 6T (UL94V-0); kolor naturalny

Parameters

Number of pins:	6
Spatial orientation:	Horizontal
Mounting:	SMD
Operating voltage:	50V
Connector:	Socket
Current:	1A
Manufacturer:	JST

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	6
Spatial orientation:	Horizontal
Mounting:	SMD
Operating voltage:	50V
Connector:	Socket
Current:	1A
Manufacturer:	JST
Type of connector:	Male
Terminal pitch [mm]:	1,5mm
