SA1612/P3S-1 WEIPU Industrial connector

Symbol Micros: Z SA1612/P3S-1

117406

Z SA1612/P3S-1

Contractor Symbol:

Case : Rys.Z SA1612/P3S-1

Datasheet

Technical drawing Add to favourites

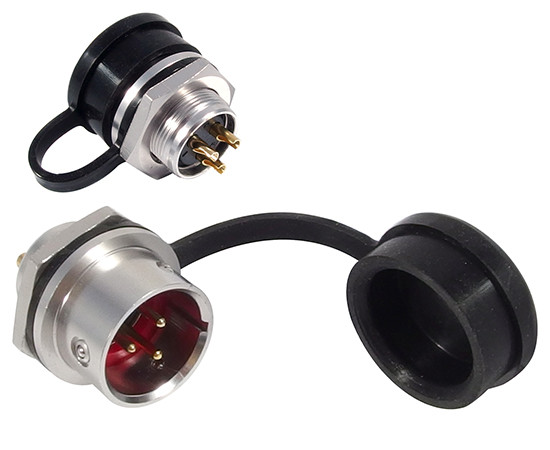

male connector, circular, 3pin, silver screwed, for panel mounting, IP67, 500V, 10A, mate with SA2010

Parameters

Series:	SA16
Number of pins:	3
Current:	10A
Operating voltage:	500V
Manufacturer:	WEIPU
Connector:	Socket
Type of connector:	Male

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA1612/P3S RoHS Case style: Rys.Z SA1612/P3S-1 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	5,2222	4,8106	4,5584	4,4300	4,3514

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA1612/P3S RoHS Case style: Rys.Z SA1612/P3S-1 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	5,2436	4,8320	4,5775	4,4490	4,3705

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	SA16
Number of pins:	3
Current:	10A
Operating voltage:	500V
Manufacturer:	WEIPU
Connector:	Socket
Type of connector:	Male
IP rating:	IP67
