SA2811/S8IB-1 WEIPU Industrial connector

Symbol Micros: Z SA2811/S8B-1

117472

Z SA2811/S8B-1

Contractor Symbol:

Case : Rys.Z SA2811/S8IB-1

Datasheet

Technical drawing Add to favourites

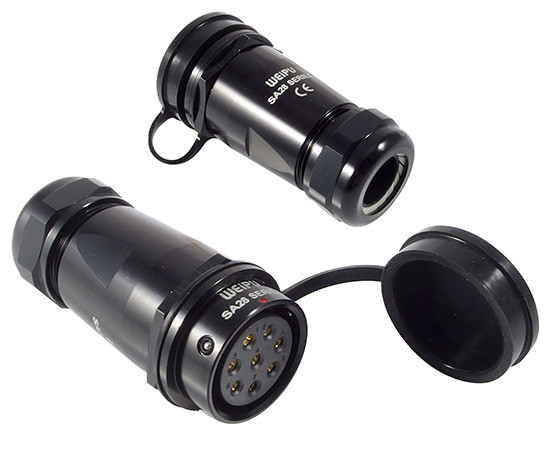

Female connector, circular, 8pin, cable diameter 13-16mm, black screwed, for cable, IP67, 500V, 25A, mate with SA2810

Parameters

Series:	SA28
Number of pins:	8
Current:	25A
Operating voltage:	500V
Manufacturer:	WEIPU
Connector:	Plug
Type of connector:	Female

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2811/S8B RoHS Case style: Rys.Z SA2811/S8IB-1 Datasheet

In stock:

9 pcs.

Quantity of pcs.	1+	5+	10+	20+	50+
Net price (EUR)	10,9170	10,1773	9,9972	9,8668	9,7482

Add to comparison tool Add inquiry (RFQ)

Packaging:
5/10 Quantity (multiple: 1)

- +

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2811/S8B RoHS Case style: Rys.Z SA2811/S8IB-1 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	5+	10+	20+
Net price (EUR)	10,8648	10,4357	10,0469	9,8454	9,7008

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Series:	SA28
Number of pins:	8
Current:	25A
Operating voltage:	500V
Manufacturer:	WEIPU
Connector:	Plug
Type of connector:	Female
IP rating:	IP67
