SA2812/S8B-1 WEIPU Industrial connector

Symbol Micros: Z SA2812/S8B-1

117482

Z SA2812/S8B-1

Contractor Symbol:

Case : Rys.Z SA2812/S8B-1

Datasheet

Technical drawing Add to favourites

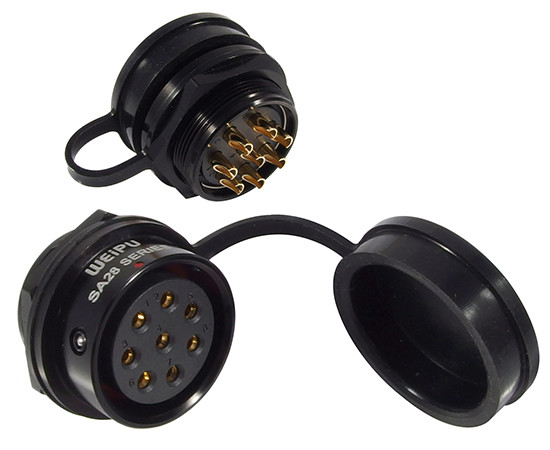

Female connector, circular, 8pin, black screwed, for panel mounting, IP67, 500V, 25A, mate with SA2810

Parameters

Series:	SA28
Number of pins:	8
Current:	25A
Operating voltage:	500V
Manufacturer:	WEIPU
Type of connector:	Female
IP rating:	IP67

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2812/S8B RoHS Case style: Rys.Z SA2812/S8B-1 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	5+	10+	30+
Net price (EUR)	8,2134	7,8330	7,4927	7,3202	7,1430

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2812/S8B RoHS Case style: Rys.Z SA2812/S8B-1 Datasheet

In stock:

7 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	8,2536	7,7267	7,3982	7,2824	7,1761

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	SA28
Number of pins:	8
Current:	25A
Operating voltage:	500V
Manufacturer:	WEIPU
Type of connector:	Female
IP rating:	IP67
