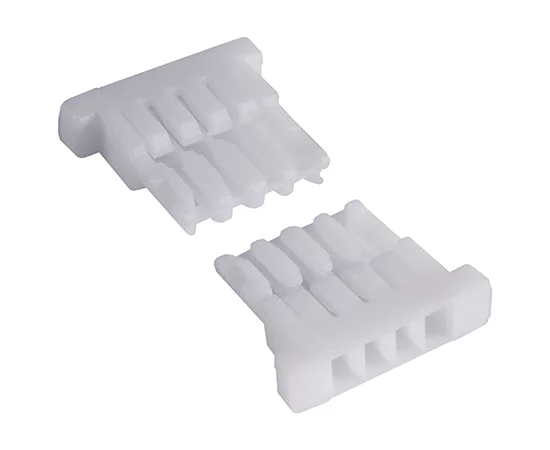

JVT1288HNO-04 JVT Cable connector

Symbol Micros: Z SHLP-04V-S-B

115115

Z SHLP-04V-S-B

Contractor Symbol:

Case : Rys.SHLP-04V-S-B

Datasheet

Technical drawing Add to favourites

plug; female; 4 pin; 3A; 250V; pitch: 1.0mm; materiał: Nylon 66; UL 94V-0; temp. pracy: -25°C~+85°C;

Parameters

Number of pins:	4
Spatial orientation:	Straight
Connector:	Plug
Current:	1A
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	50V

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1288HNO-04 RoHS Case style: Rys.SHLP-04V-S-B Datasheet

In stock:

997 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1474	0,0591	0,0343	0,0286	0,0268

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Spatial orientation:	Straight
Connector:	Plug
Current:	1A
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	50V
Type of connector:	Female
Terminal pitch [mm]:	1,0mm
