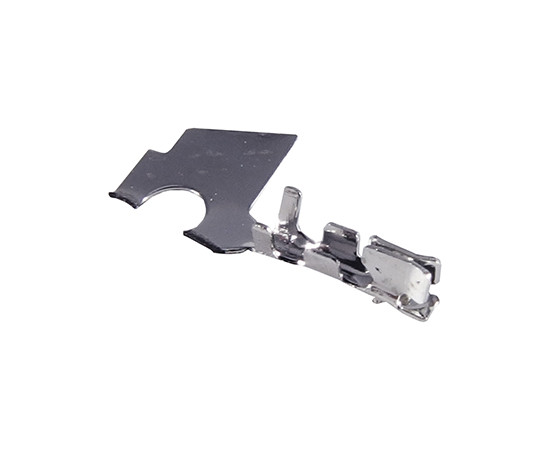

JVT1253TP-SNS JVT Cable connector

Symbol Micros: Z SHpint

115126

Z SHpint

Contractor Symbol:

Case : Rys.SHpint

Datasheet

Technical drawing Add to favourites

contact; female; 50V; 1A; material: phosphor bronze; wire range: AWG 28-32

Parameters

Number of pins:	0
Spatial orientation:	N/A
Connector:	Contact
Current:	1A
Mounting:	Crimped
Operating voltage:	50V
Manufacturer:	JVT

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1253TP-SNS RoHS Case style: Rys.SHpint Datasheet

In stock:

18140 pcs.

Quantity of pcs.	20+	100+	500+	3000+	20000+
Net price (EUR)	0,0329	0,0120	0,0063	0,0047	0,0044

Add to comparison tool Add inquiry (RFQ)

Packaging:
20000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	0
Spatial orientation:	N/A
Connector:	Contact
Current:	1A
Mounting:	Crimped
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Female
Terminal pitch [m]:	1,0mm
