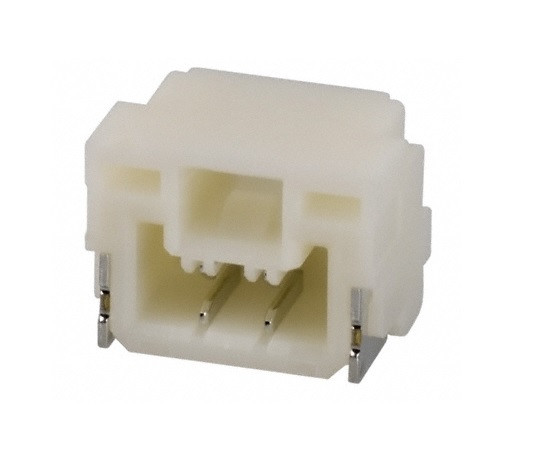

SM02B-GHS-TB (LF)(SN) JST

Symbol Micros: Z SM02B-GHS-TB

481451

Z SM02B-GHS-TB

Contractor Symbol:

Case : Rys.SM02B-GHS-TB

Datasheet

Add to favourites

Conn Shrouded Header (4 Sides) HDR 2 POS 1.25mm Solder RA Side Entry SMD T/R

Parameters

Number of pins:	2
Manufacturer:	JST
Connector:	Socket
Mounting:	SMD
Spatial orientation:	Horizontal
Operating voltage:	50V
Current:	1A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2
Manufacturer:	JST
Connector:	Socket
Mounting:	SMD
Spatial orientation:	Horizontal
Operating voltage:	50V
Current:	1A
Type of connector:	Male
Terminal pitch [m]:	1,25mm
