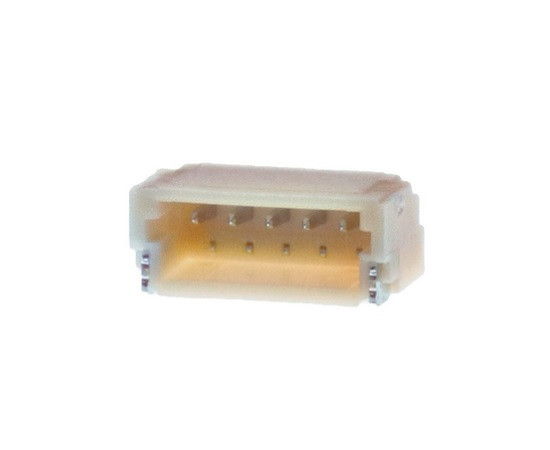

SM05B-SRSS-TB(LF)(SN) JST Cable connector

Symbol Micros: Z SM05B-SRSS-TB

348294

Z SM05B-SRSS-TB

Contractor Symbol:

Case : Rys.SM05B-SRSS-TB

Datasheet

Add to favourites

plug; male, 5 pin; 1A; 50V; pitch: 1,0mm; material: UL94V-0, temp. pracy: -25°C~+85°C

Parameters

Number of pins:	5
Connector:	Plug
Current:	1A
Operating voltage:	50V
Manufacturer:	JST
Type of connector:	Male

All parameters

Manufacturer:: Japan Science and Technology Manufacturer part number: SM05B-SRSS-TB (LF)(SN) Case style: Rys.SM05B-SRSS-TB

External warehouse:

21000 pcs.

Quantity of pcs.	3000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1671

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	5
Connector:	Plug
Current:	1A
Operating voltage:	50V
Manufacturer:	JST
Type of connector:	Male
