SP1110/P5I-1N WEIPU Industrial connector

Symbol Micros: Z SP1110/P5

117214

Z SP1110/P5

Contractor Symbol:

Case : Rys.Z SP1110/P5I

Datasheet

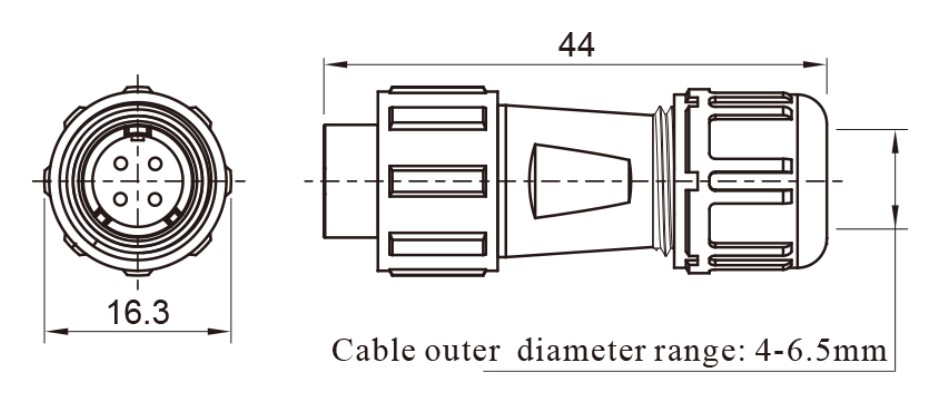

Technical drawing Add to favourites

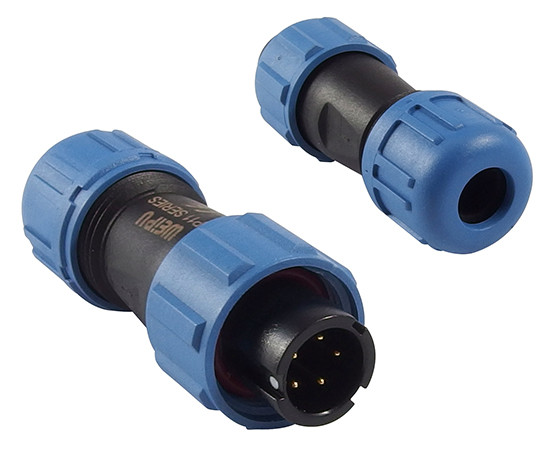

Male connector, circular, 5pin, cable diameter 4-6.5mm screwed, for cable, IP68, 125V, 3A, mate with SP1111/1112; internal thread;

Parameters

Series:	SP11
Number of pins:	5
Current:	3A
Operating voltage:	125V
Manufacturer:	WEIPU
Connector:	Plug
Mounting:	Soldering

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-04-15

Quantity of pcs.: 50





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-08-30

Quantity of pcs.: 100

• Parameters

Series:	SP11
Number of pins:	5
Current:	3A
Operating voltage:	125V
Manufacturer:	WEIPU
Connector:	Plug
Mounting:	Soldering
Type of connector:	Male
IP rating:	IP68
