SP1312/S9-N WEIPU Industrial connector

Symbol Micros: Z SP1312/S9

75744

Z SP1312/S9

Contractor Symbol:

Case : Rys.Z SP1312/S9

Datasheet

Technical drawing Add to favourites

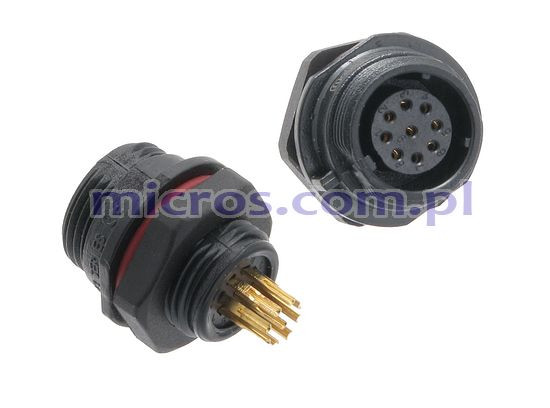

Female connector, circular, 9pin screwed, for panel mounting, IP68, 125V, 3A, mate with SP1310; external thread;

Parameters

Series:	SP13
Number of pins:	9
Current:	3A
Operating voltage:	125V
Manufacturer:	WEIPU
Connector:	Socket
Mounting:	Soldering

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-03-30

Quantity of pcs.: 40

• Parameters

Series:	SP13
Number of pins:	9
Current:	3A
Operating voltage:	125V
Manufacturer:	WEIPU
Connector:	Socket
Mounting:	Soldering
Type of connector:	Female
IP rating:	IP68
