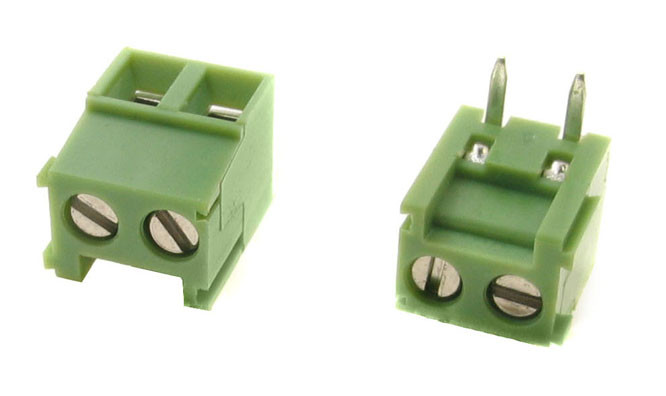

XY303R-2P 3.81mm (-) XINYA Terminal block

Symbol Micros: Z TL101r-2pgs

22288

Z TL101r-2pgs

Contractor Symbol:

Case : Rys.TL101r-2pgs

Datasheet

Technical drawing Add to favourites

2 poles, pitch 3.81mm, height 7.35mm, green colour, 300V, 10A, 26-16AWG, angled, lift, slot screw, steel, zinc plated wire cage and solder pin: brass and tin plated, eqiv:TBX3802R, Z DG381R-3.81/2

Parameters

Height [mm]:	7,35mm
Terminal pitch [mm]:	3,81mm
Number of pins:	2
Manufacturer:	XINYA
Colour:	Green
Screw type:	Slotted head screw

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height [mm]:	7,35mm
Terminal pitch [mm]:	3,81mm
Number of pins:	2
Manufacturer:	XINYA
Colour:	Green
Screw type:	Slotted head screw
