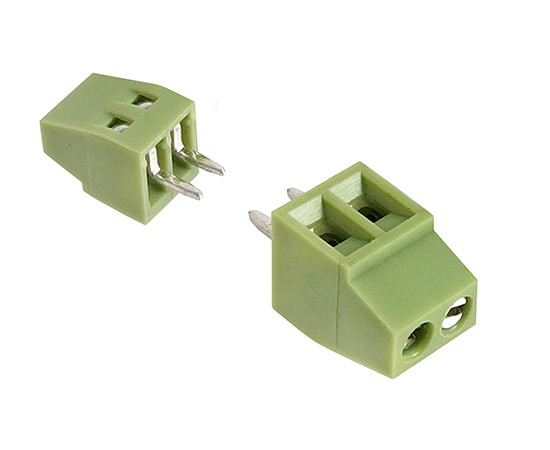

XY308-2P 2.54mm (-) XINYA Terminal block

Symbol Micros: Z TL2308-2pgs-2.54

109585

Z TL2308-2pgs-2.54

Contractor Symbol:

Case : Rys.TL2308-2pgs-2.54

Datasheet

Technical drawing Add to favourites

2 poles, pitch 2.54mm, height 8.5mm, green colour, 150V, 6A, 26-18AWG, straigth, lift, slot screw, steel, zinc plated pin header: brass, tin plated, wire cage: brass, nickel plated

Parameters

Height [mm]:	8,5mm
Terminal pitch [mm]:	2,54mm
Manufacturer:	XINYA
Number of pins:	2
Colour:	Green
Screw type:	Slotted head screw

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-04-15

Quantity of pcs.: 4000

• Parameters

Height [mm]:	8,5mm
Terminal pitch [mm]:	2,54mm
Manufacturer:	XINYA
Number of pins:	2
Colour:	Green
Screw type:	Slotted head screw
