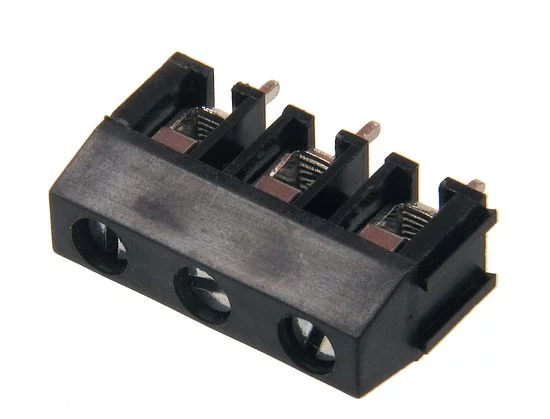

XY705V-3P 7.5mm (-) XINYA Terminal block

Symbol Micros: Z TL402v-3pks

45655

Z TL402v-3pks

Contractor Symbol:

Case : Rys.TL402v-3pkc

Datasheet

Technical drawing Add to favourites

3 poles, pitch 7.50mm, height 13.1mm, black colour, 300V, 15A, 22-14AWG, straigth, slot screw, steel, zinc plated solder pin: brass, tin plated, wire protector, stainless steel

Parameters

Height:	13,1mm
Terminal pitch:	7,5mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Black
Screw type:	Slotted head screw

All parameters

Manufacturer:: ZBENY Manufacturer part number: XY705V-3P 7.50 RoHS Case style: Rys.TL402v-3pkc

In stock:

1020 pcs.

Quantity of pcs.	3+	10+	50+	300+	1500+
Net price (EUR)	0,2888	0,1855	0,1305	0,1108	0,1054

Add to comparison tool Add inquiry (RFQ)

Packaging:
300/4800 Quantity (multiple: 1)

- +

Manufacturer:: XINYA Manufacturer part number: XY705V-3P 7.50 RoHS Case style: Rys.TL402v-3pkc Datasheet

In stock:

4994 pcs.

Quantity of pcs.	3+	10+	50+	300+	1500+
Net price (EUR)	0,2888	0,1855	0,1305	0,1108	0,1054

Add to comparison tool Add inquiry (RFQ)

Packaging:
300/4800 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-10

Quantity of pcs.: 14400

• Parameters

Height:	13,1mm
Terminal pitch:	7,5mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Black
Screw type:	Slotted head screw
